S1000 Steel Heavy Fitzroy®

S1000 Steel Heavy Fitzroy®

Fitzroy® Sliding Door Systems

Home / Straight Sliding Tracks / S1000 Steel Heavy Fitzroy®

The S1000 Steel Heavy Fitzroy® is a steel construction, top hung, continuous ball bearing straight sliding door track designed for manual operation of doors up to 1000kg.

Suitable for a wide range of applications including public, government, correctional, commercial and retail.

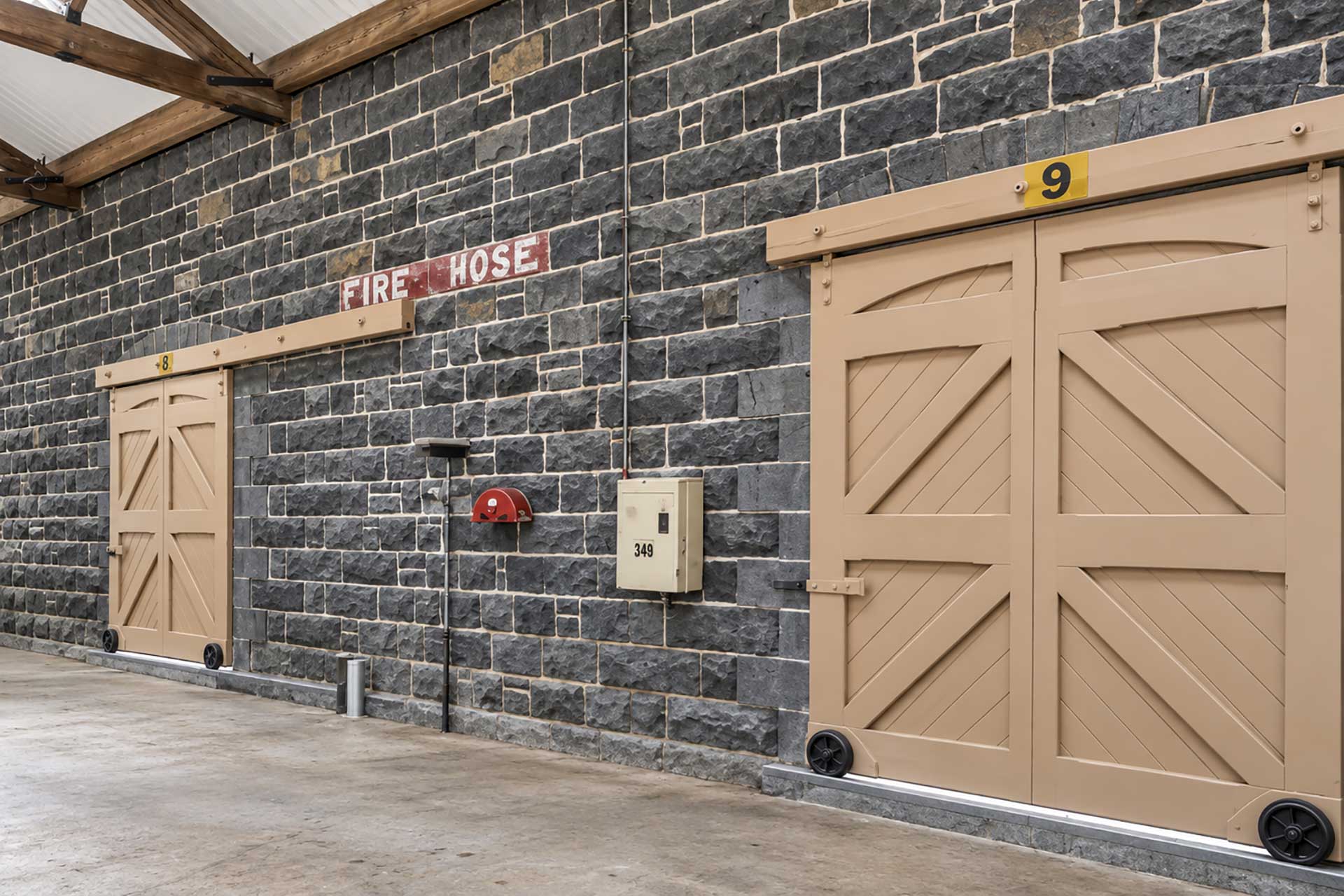

Photo credit: Pellicano
Photo credit: Pellicano

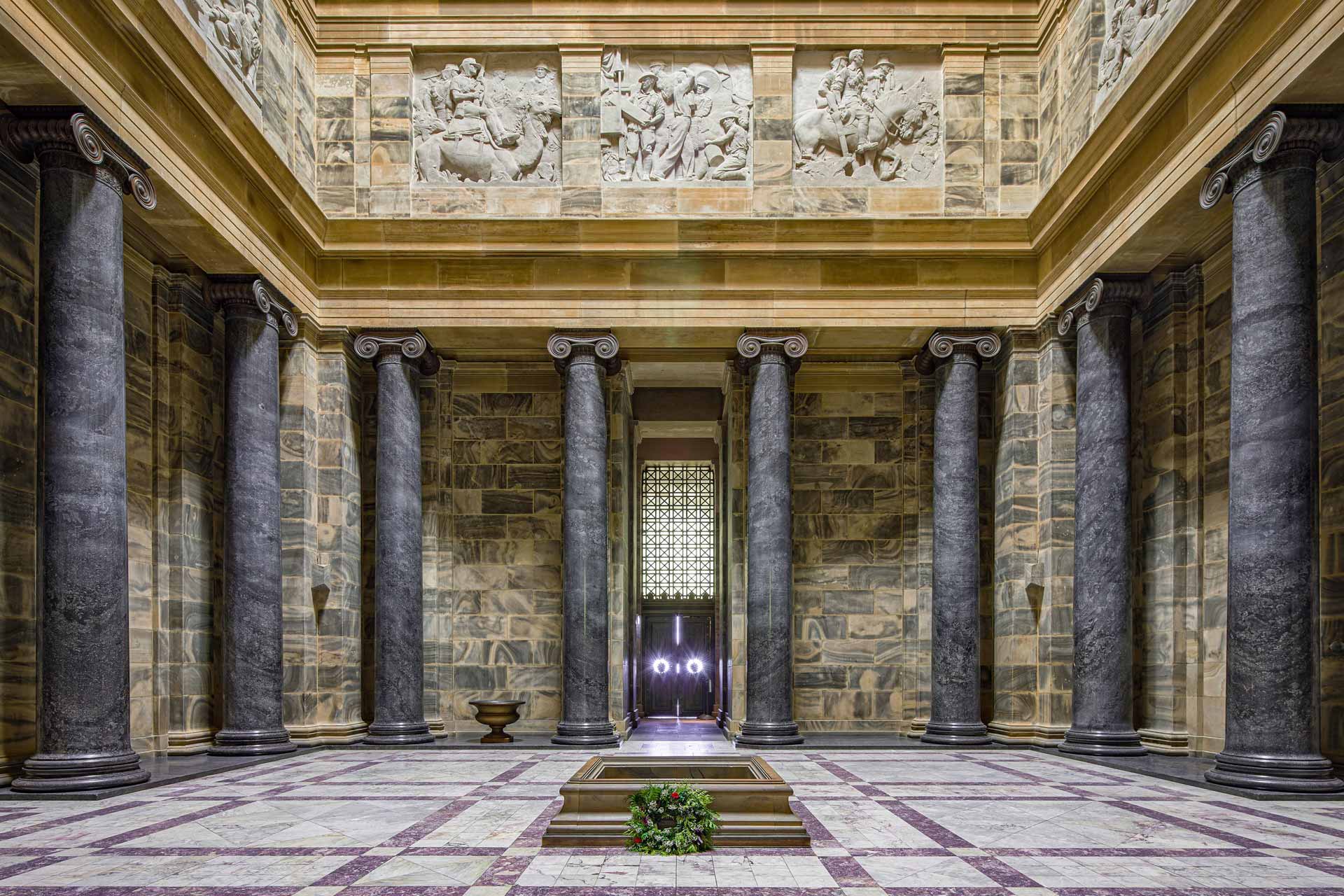

Shrine of Rembrance
Photo credit: Louis Petruccelli
Shrine of Rembrance
Photo credit: Louis Petruccelli

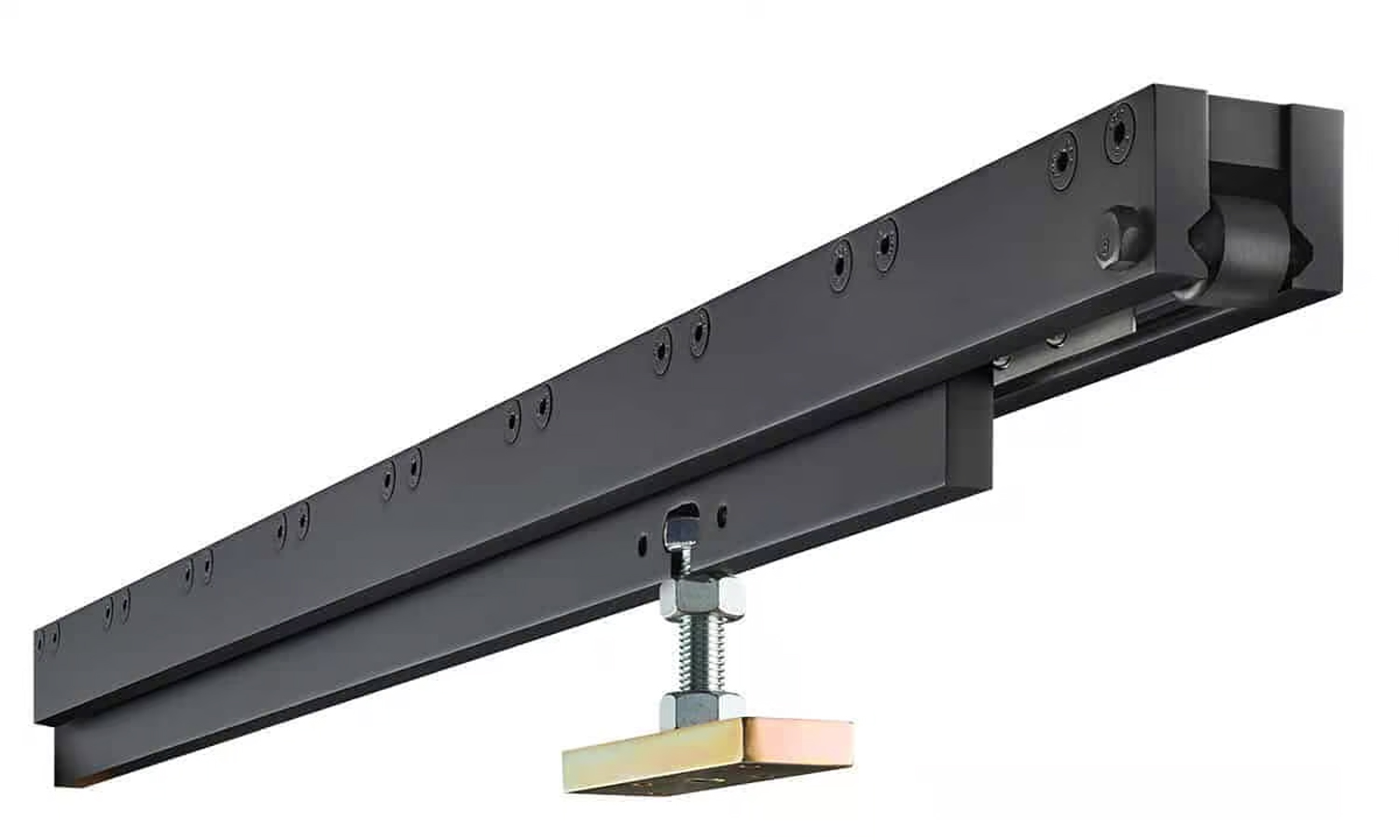

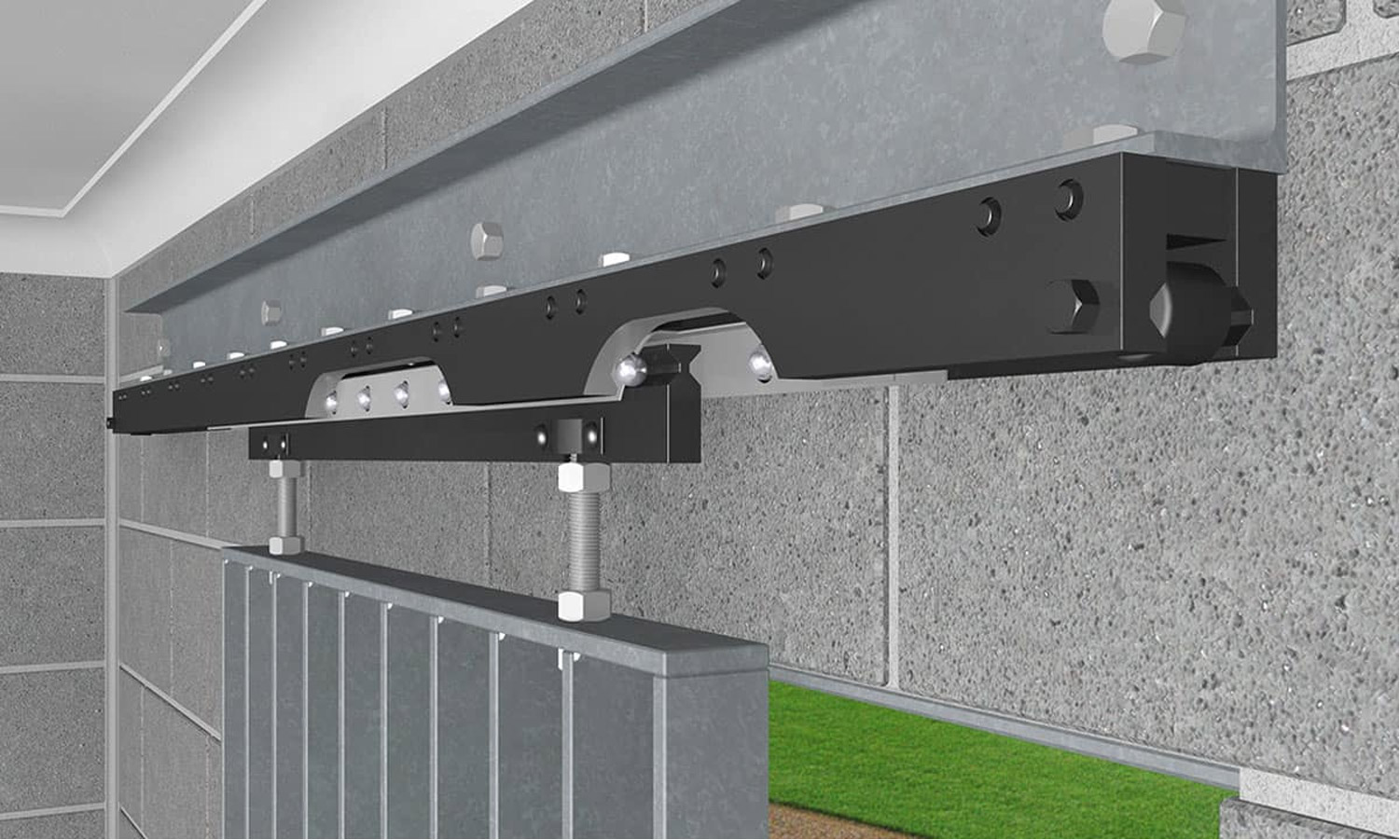

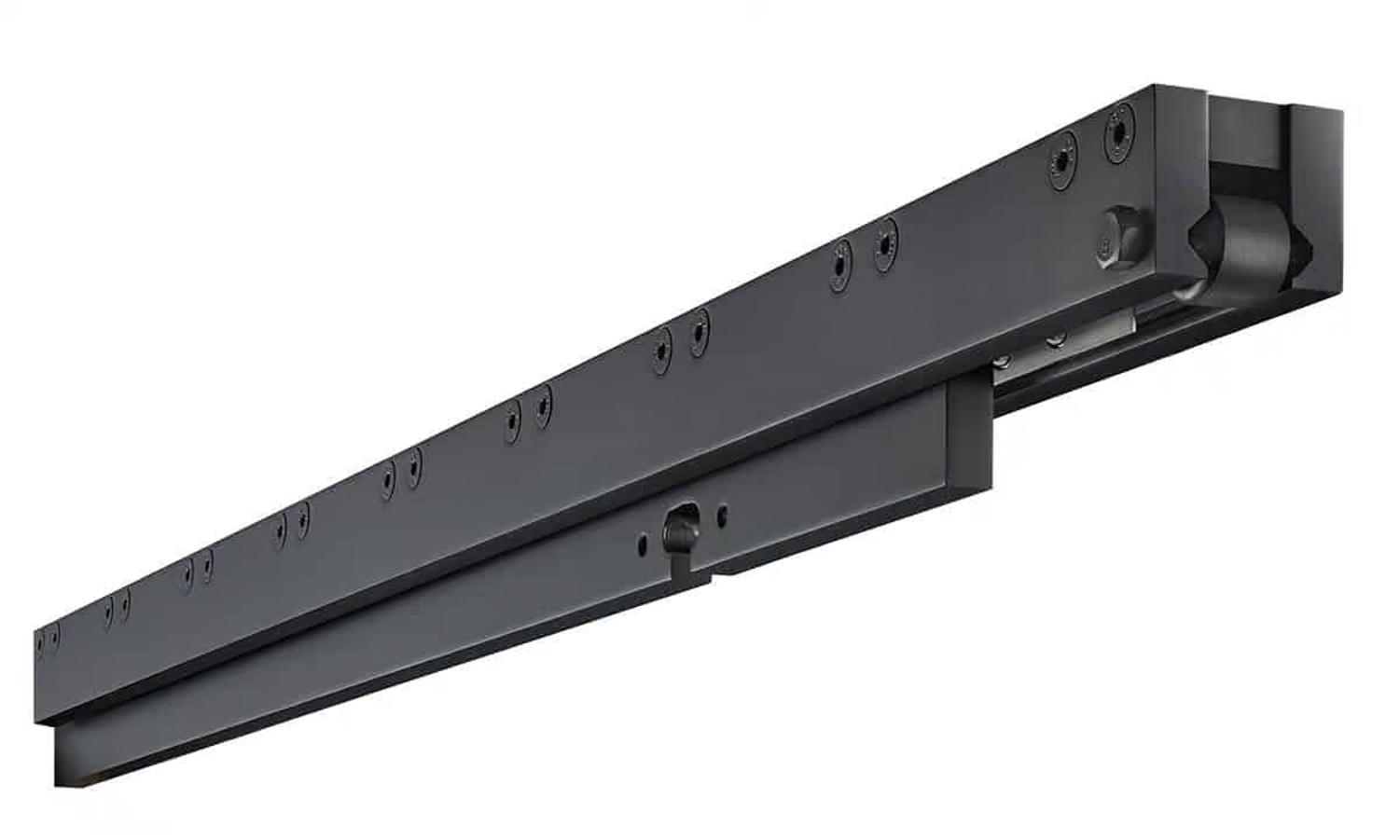

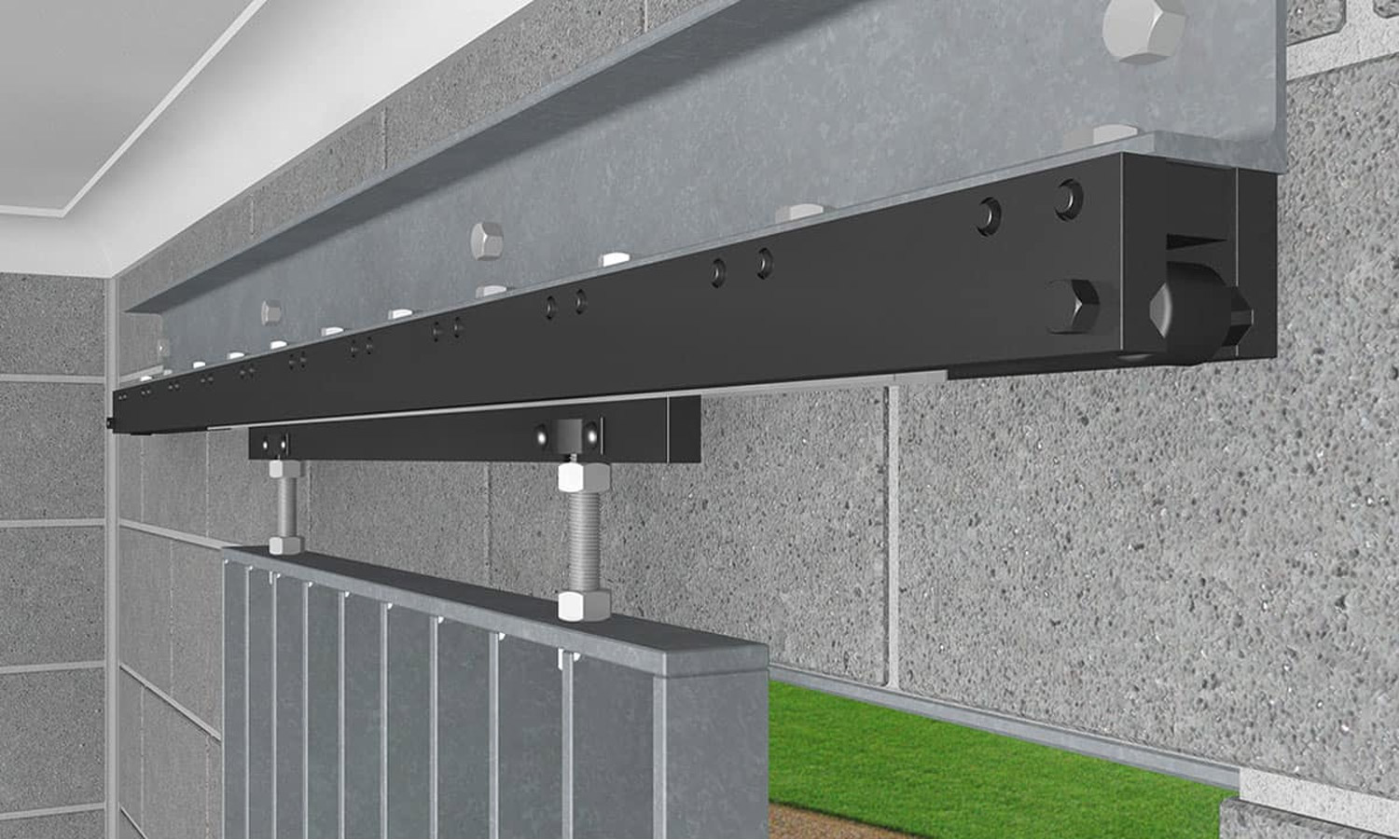

S1000 Steel Heavy Fitzroy®
S1000 Steel Heavy Fitzroy®
S1000 Steel Heavy Fitzroy®
S1000 Steel Heavy Fitzroy®
S1000 Steel Heavy Fitzroy® 1000kg Capacity
S1000 Steel Heavy Fitzroy® 1000kg Capacity

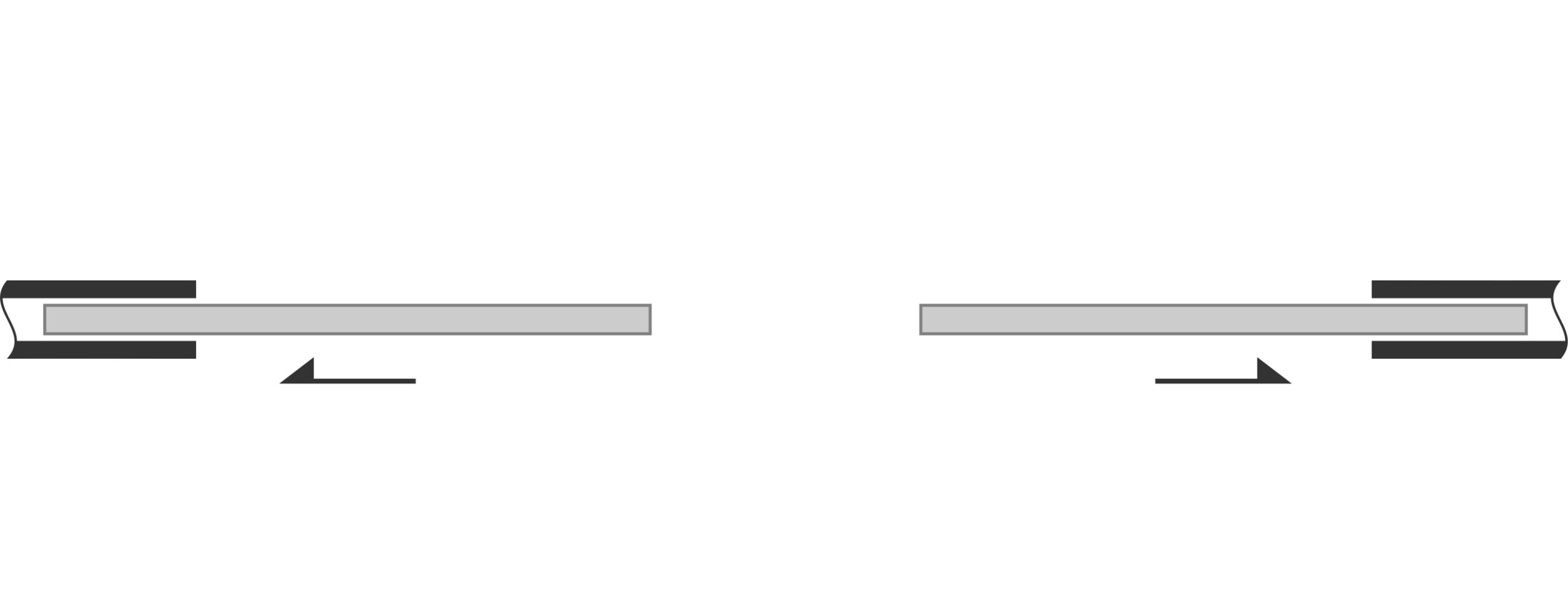

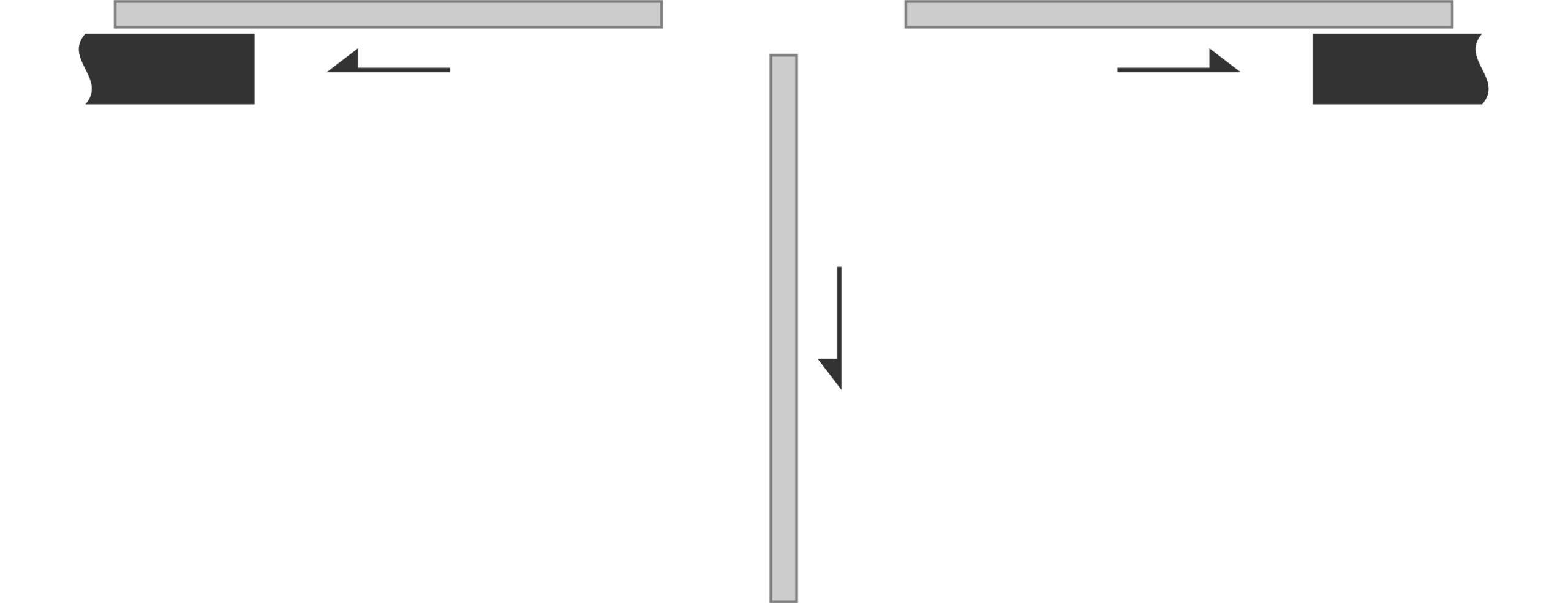

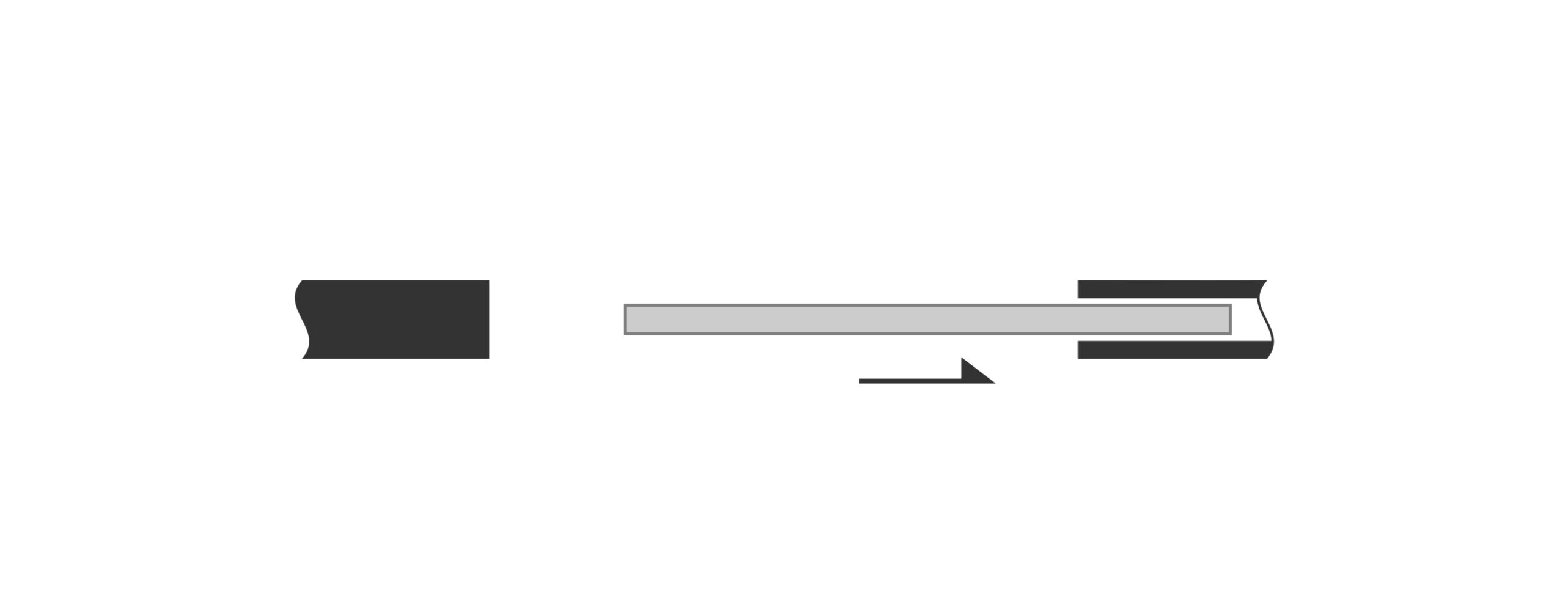

Configurations

  • Works with single and multiple door configurations.

Finish

  • Standard black painted finish.
  • Alternative finishes to suit environment available on request.
  • Stainless steel internal component upgrade available on request.

Other Track Capacities

Installation Elevation
  • Click to enlarge image

The following information will assist with advice on Fitzroy® track system specification:

  • Door width, construction, thickness & weight
  • Door configuration and number of sliding doors
  • Application type and environment
  • Fixing and guide requirements

Specification:

  • S1000 Steel Heavy Fitzroy® sliding door track to suit doors up to 1000kg made to order by Fitzroy® Tracks Pty Ltd
  • Custom-manufactured, top-hung continuous ball-bearing track system to suit the fixing method, door and installation dimensions with built-in non-adjustable rubber stops.
  • Track length and door travel determined by Fitzroy® Tracks Pty Ltd from dimensions provided at time of order.

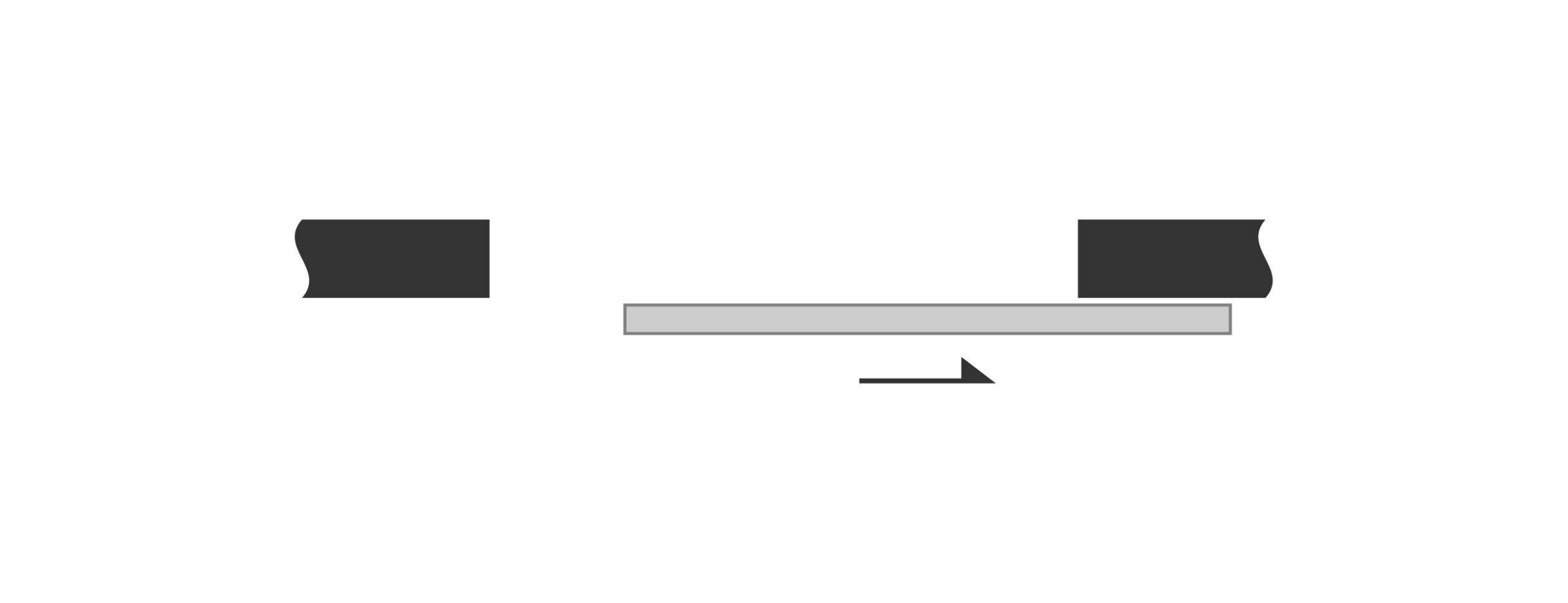

Straight Single Wall

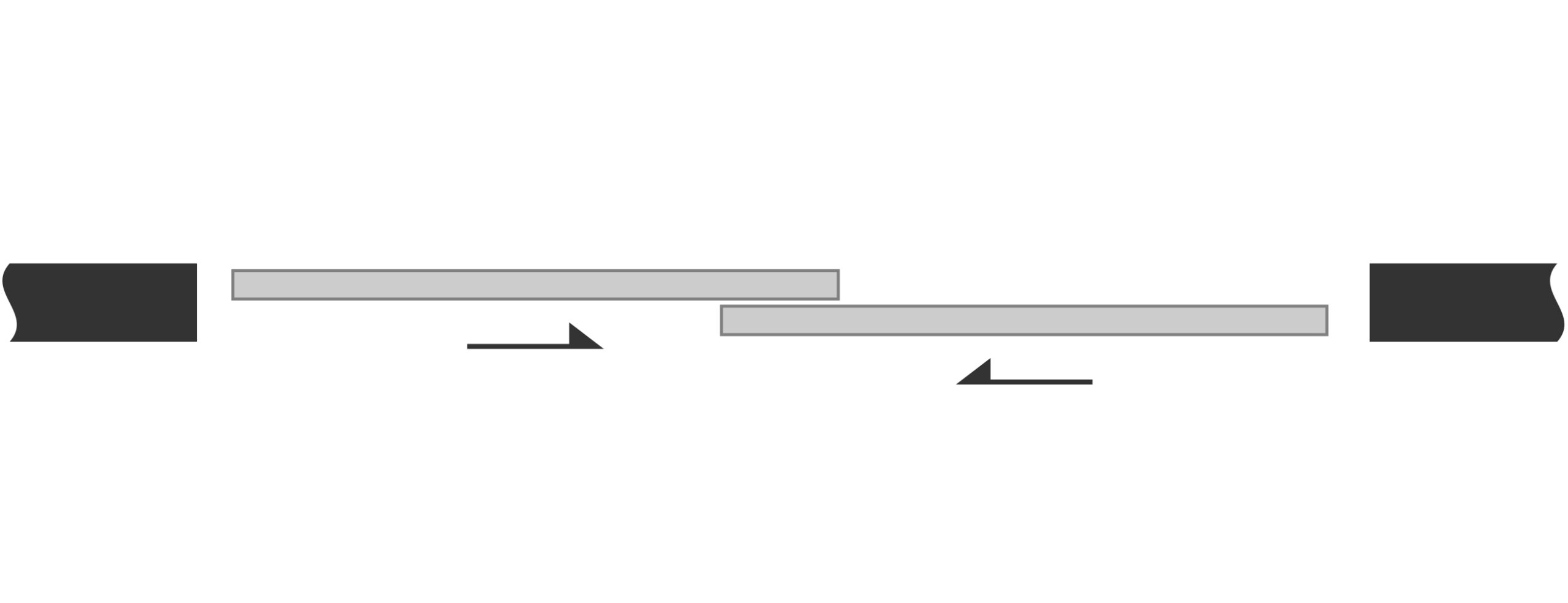

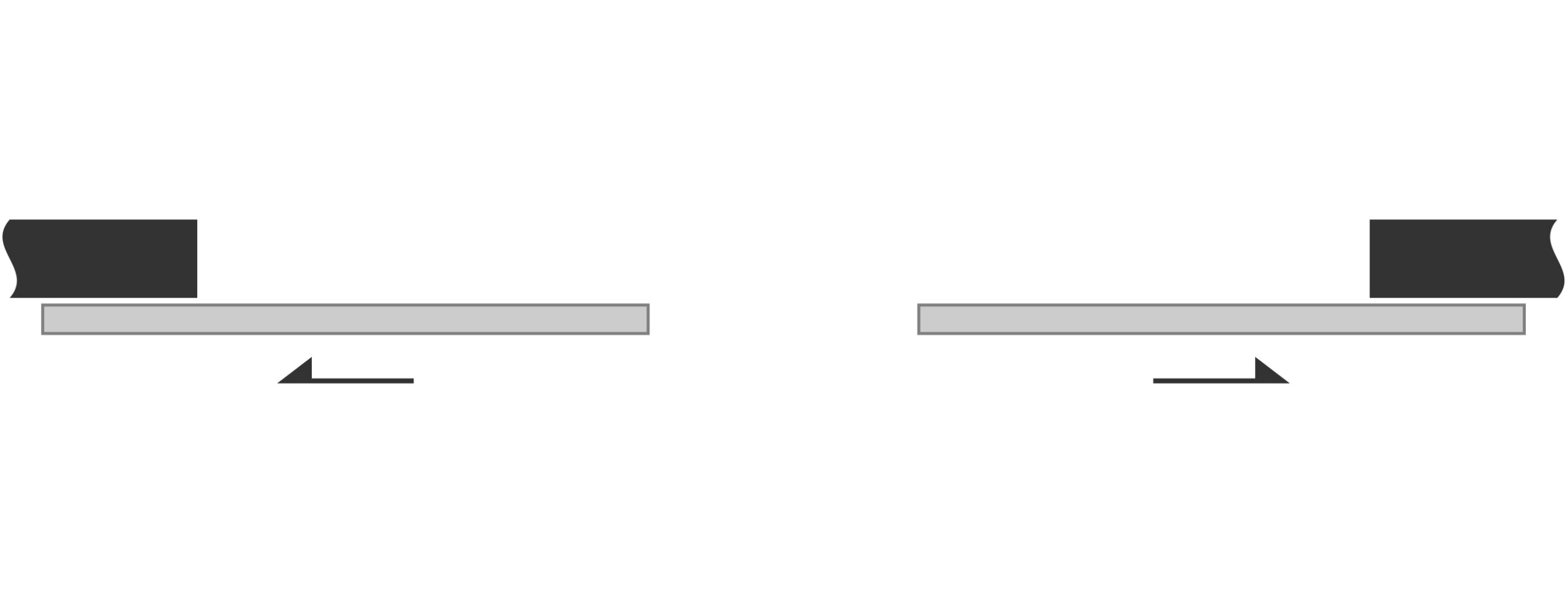

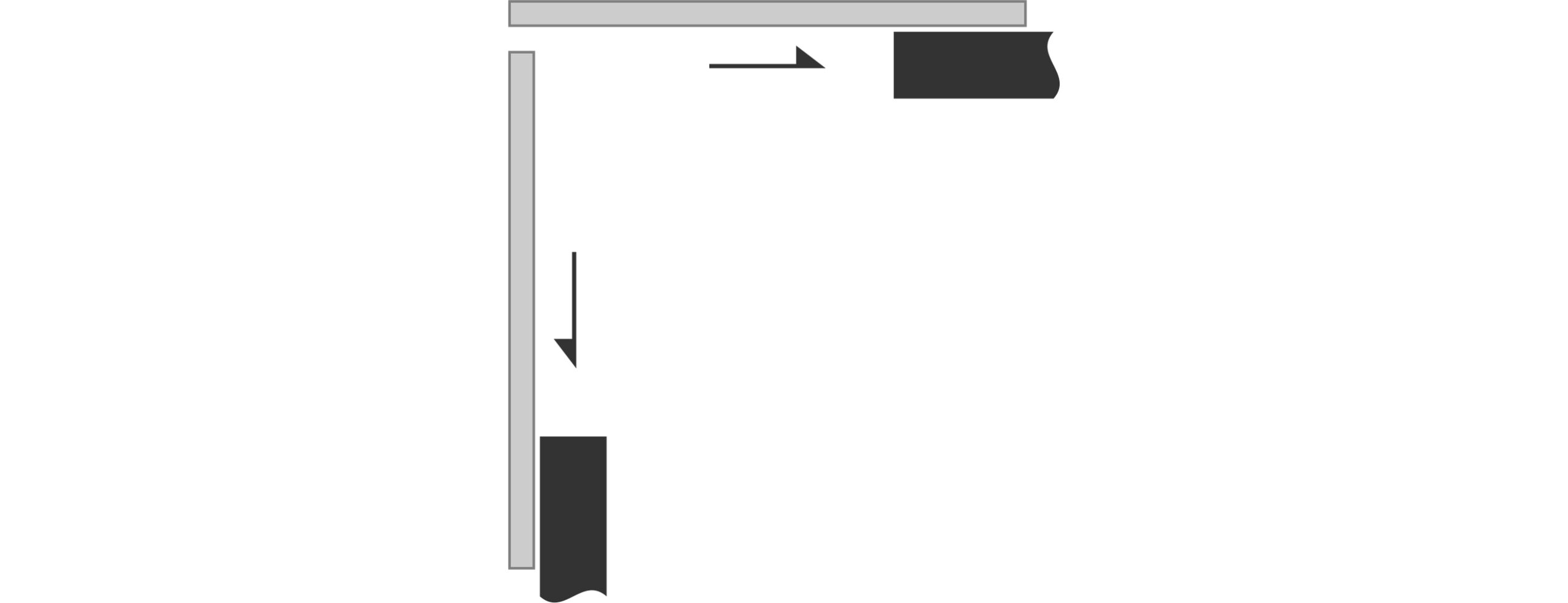

Configurations:

  • Fitzroy® Tracks can be configured to suit a range of door layouts, openings and project requirements.
  • The Fitzroy® Parallel Track System is available for multiple sliding door arrangements. When using steel Fitzroy® tracks in parallel sliding arrangements, the door collecting mechanisms for sequential operation must be incorporated into the door design, as Fitzroy® parallel door collectors are compatible with aluminium Fitzroy® tracks only.
  • Steel Fitzroy® Tracks can be curved to a constant radius.

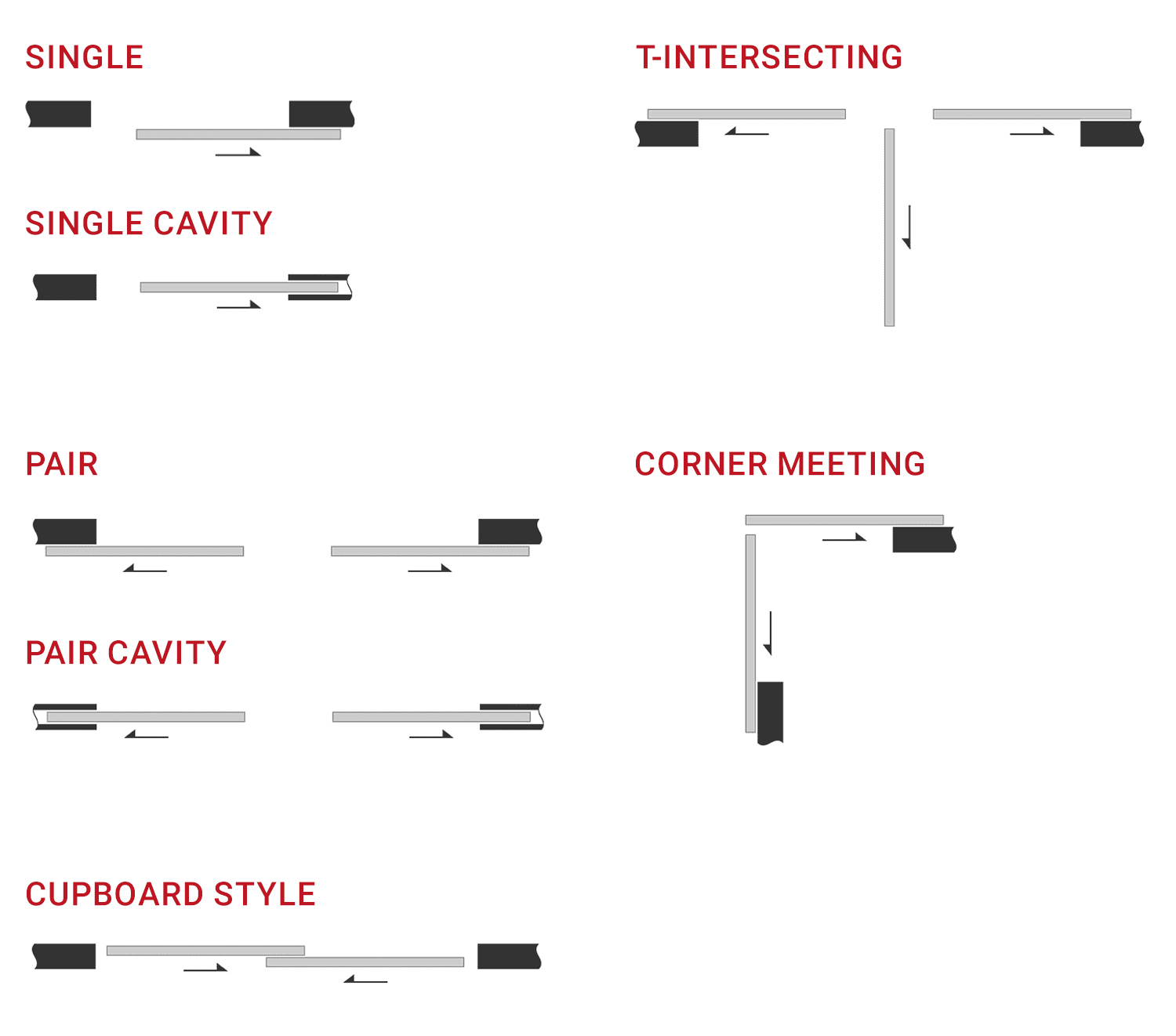

S1000 Fixings Configurations
S1000 Fixings

Please note:

  • No direct overhead fixing to concrete or masonry.
  • Maximum fixing centres: 750mm

Fitzroy® Track fixing options:

  • Face of Wall – Brackets & track-to-bracket bolt assemblies supplied. Wall fixings by others.
  • Overhead Bolt – Bolt assemblies supplied.
  • Overhead Screw – Predrilled for 16G CSK screws. Screw selection & supply by client; screws must suit track, application and door weight.

Door Connection:

  • Doors connect to the Fitzroy® Track via supplied pendant bolt assemblies – refer detail.
  • Typically, minimum of two assemblies are required per door; quantity increases with door width.
  • Frameless glass doors require a suitable patch fitting or top rail adaptor.

Timber Doors

Brass Tee Guide
25 x 25 x 3mm
100mm long

Timber Doors – Brass Tee Guide

Stainless Steel Guide
38 x 38 x 5mm
100mm long

Timber Doors – Stainless Steel guide

Brass Tee Guide with
Nylon Recessed Channel
(NRC) Guide

Timber Doors – Brass Tee Guide with NRC Guide

Aluminium Doors

Twin Roller
Guide

Aluminium Doors – Twin Roller Guide

Brass Tee Guide
25 x 25 x 3mm
100mm long

Aluminium Doors – Brass Tee Guide

Stainless Steel Guide
38 x 38 x 5mm
100mm long

Aluminium Doors – Stainless Steel Guide

Brass Tee Guide
with Nylon Recessed
Channel (NRC) Guide

Aluminium Doors – Brass Tee Guide with Nylon Recessed Channel Guide

Documentation

Order Forms

Why use Fitzroy®

  • Experienced technical and specification advice
  • Suits a large range of door widths and heights
  • Compatible with a wide variety of door constructions including solid core, semi-solid core, MDF, framed and frameless glass, aluminium, screens, steel framed with cladding and gates
  • Easy, smooth and reliable operation
  • Heavy duty with proven longevity and low maintenance requirements
  • Custom made to client requirements
  • Top hung with a range of fixing options and guides
  • Easily incorporated with other door hardware
  • Upgrade available for salt and other environments
  • DDA compliance can be achieved for certain weights and widths of door
  • Australian Made
Warranty & Maintenance-icon

Warranty & Maintenance

Fitzroy® Tracks have a proven extensive service life providing clients decades of trouble free operation when installed and maintained correctly.

Fitzroy® Tracks have low maintenance requirements making it easy for the user to care for and ensure a lengthy service life for their track.

Warranty Guide
Maintenance Guide
