Fitzroy® Parallel track systems are an excellent solution for maximising wide openings without requiring the internal space needed for large sliding doors.

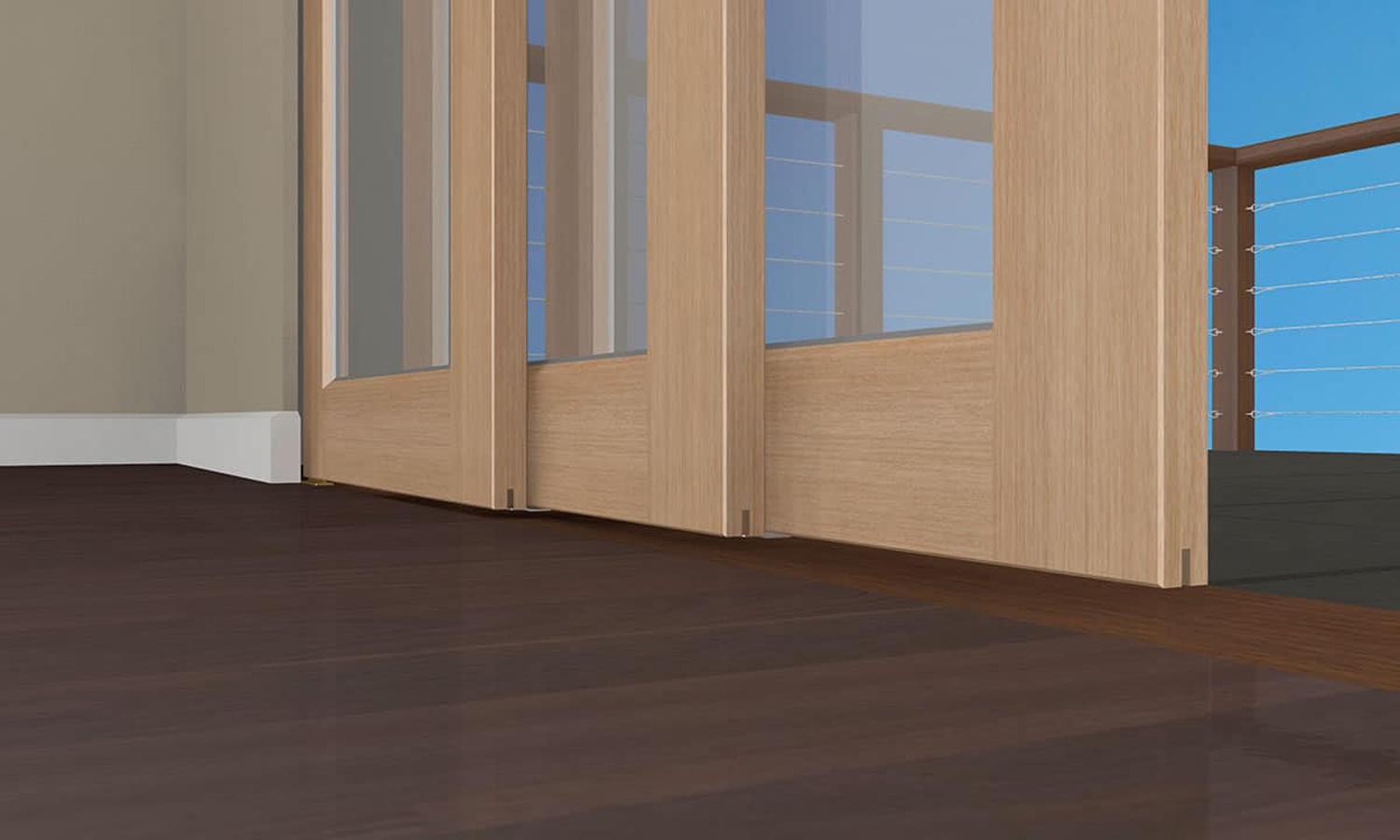

Our A100P Alloy Light Fitzroy® Parallel (for doors up to 100kg) and A500P Alloy Medium Fitzroy® Parallel (for doors up to 500kg) can accommodate arrangements from two to six doors opening to either one or both sides behind a wall, fixed panel or into a cavity.

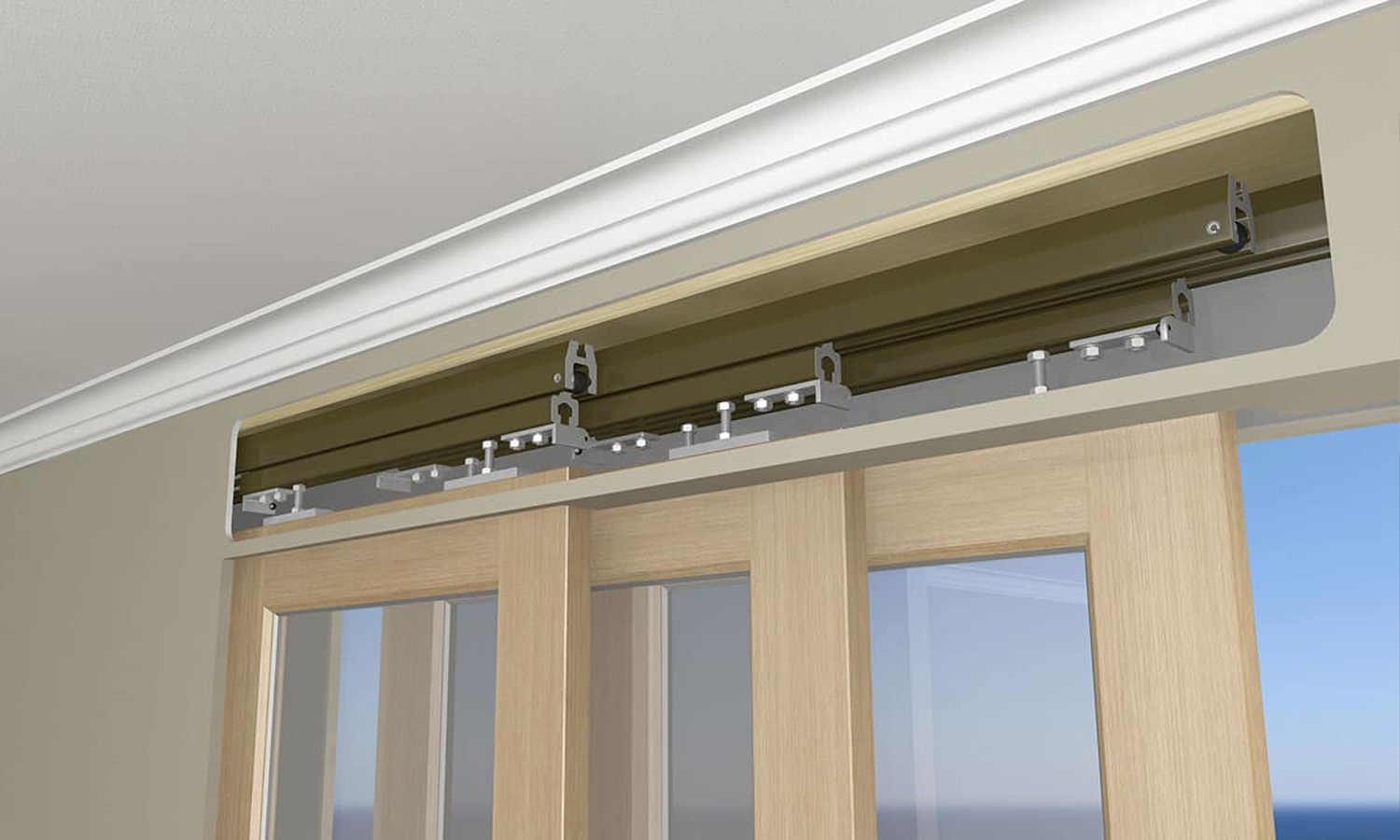

These top-hung systems include robust custom collecting mechanisms that enable the doors to open and close sequentially, with only the leading door requiring operation.
For individual track details and specifications, refer to our A100 Alloy Light Fitzroy® or A500 Alloy Medium Fitzroy® sliding door track systems, depending on the door weight.
Please note: For parallel arrangements using steel Fitzroy® tracks, sequential door collecting mechanisms must be incorporated into the door design, as Fitzroy® parallel door collectors are compatible with aluminium Fitzroy® tracks only.
As with our straight sliding door tracks the A100P and A500P suit a large range of doors widths and heights, are compatible with a wide variety of door constructions and provide easy, smooth and reliable operation.
Get in touch with our experienced team for personalised advice for your project from specification to installation.

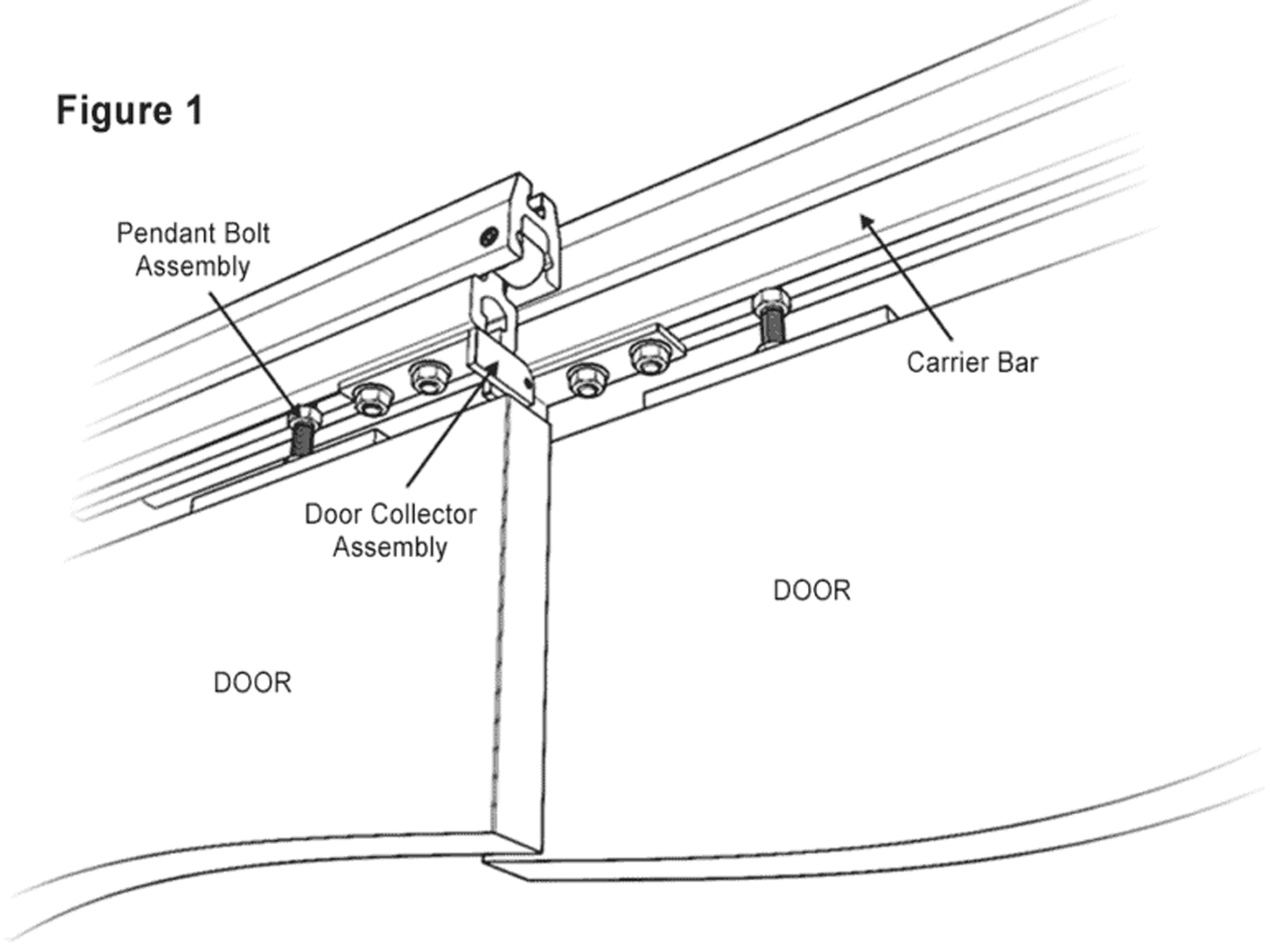

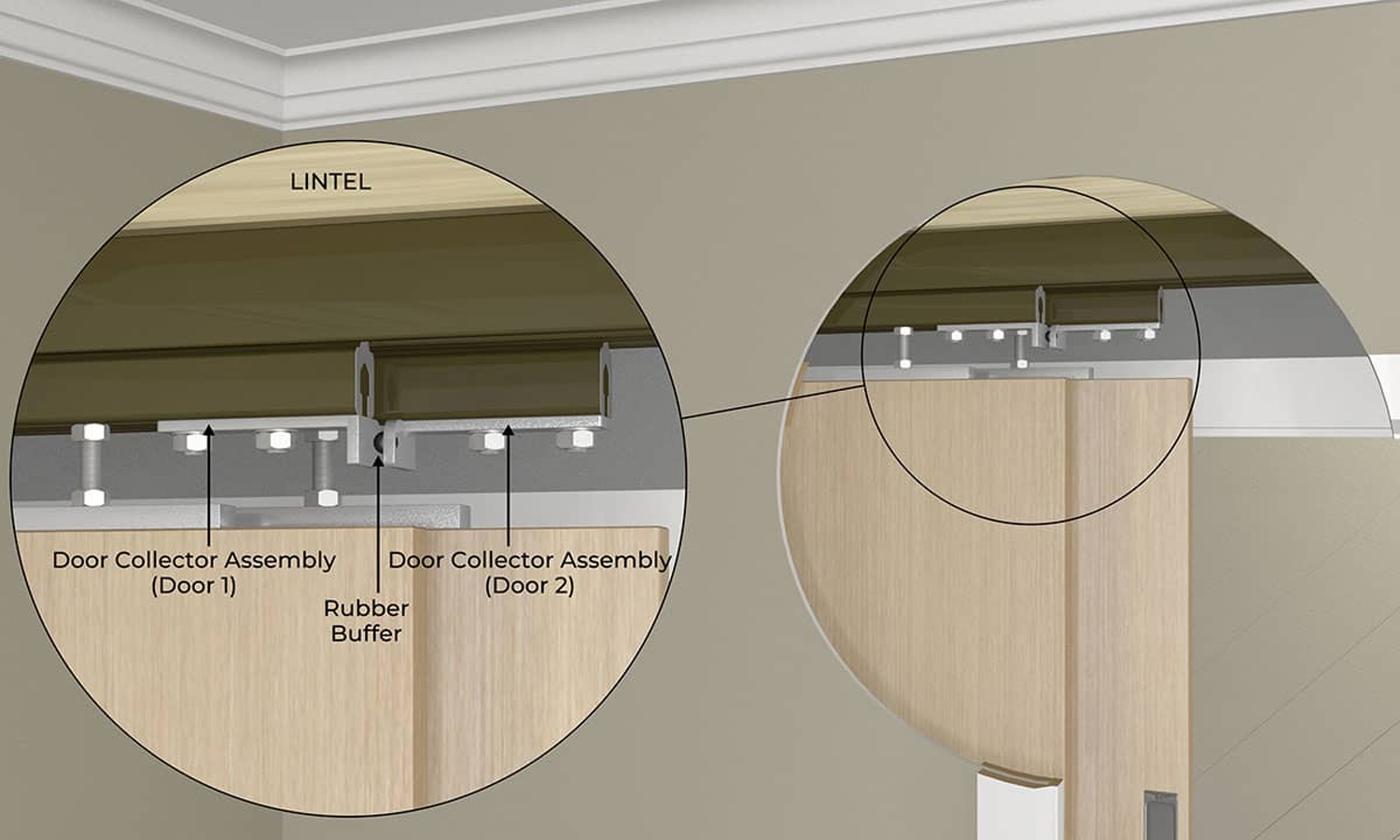

Figure 1

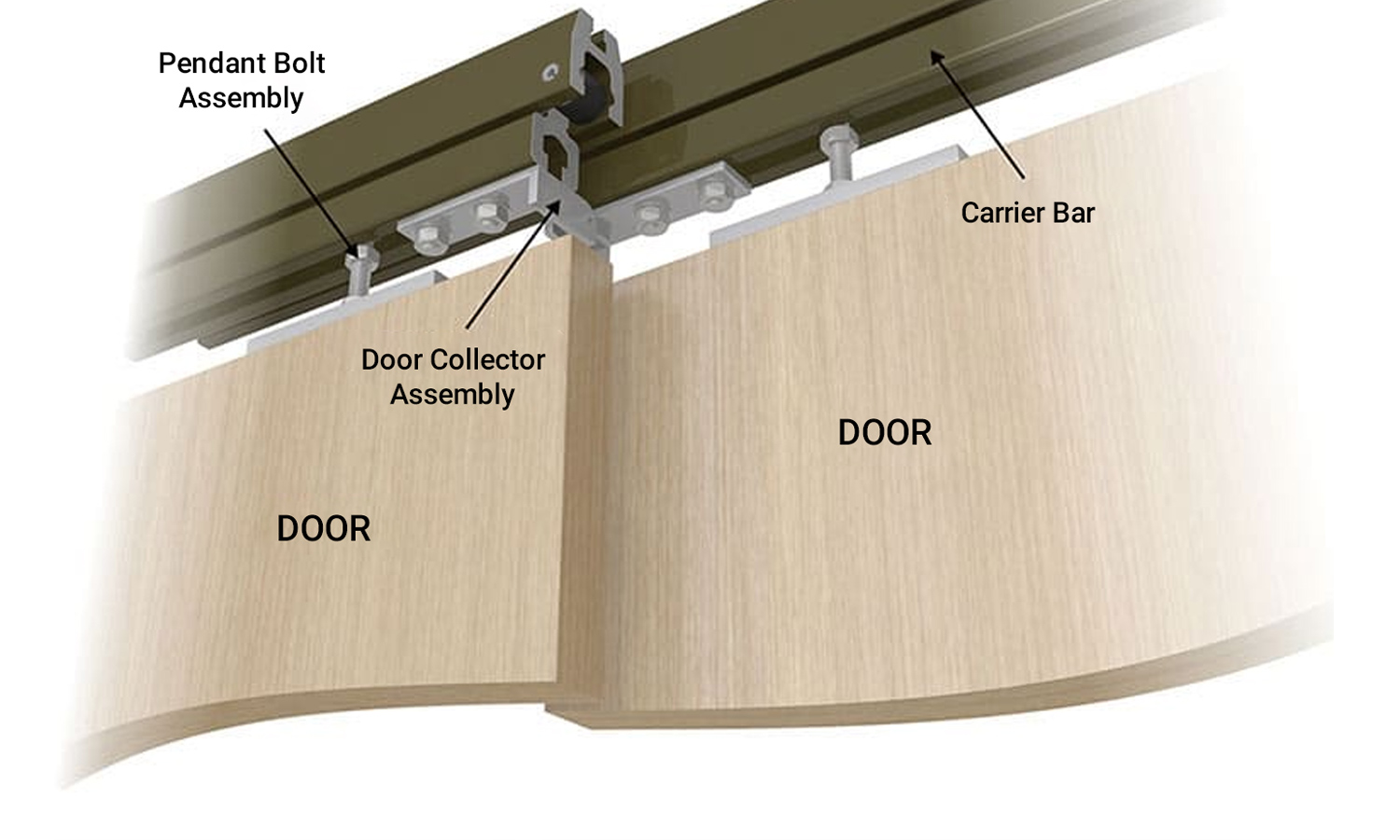

Shows in detail the door hanging arrangement and the door collector assembly. Door collecting hardware enables sequential operation of the system by manually operating the leading door leaf only.

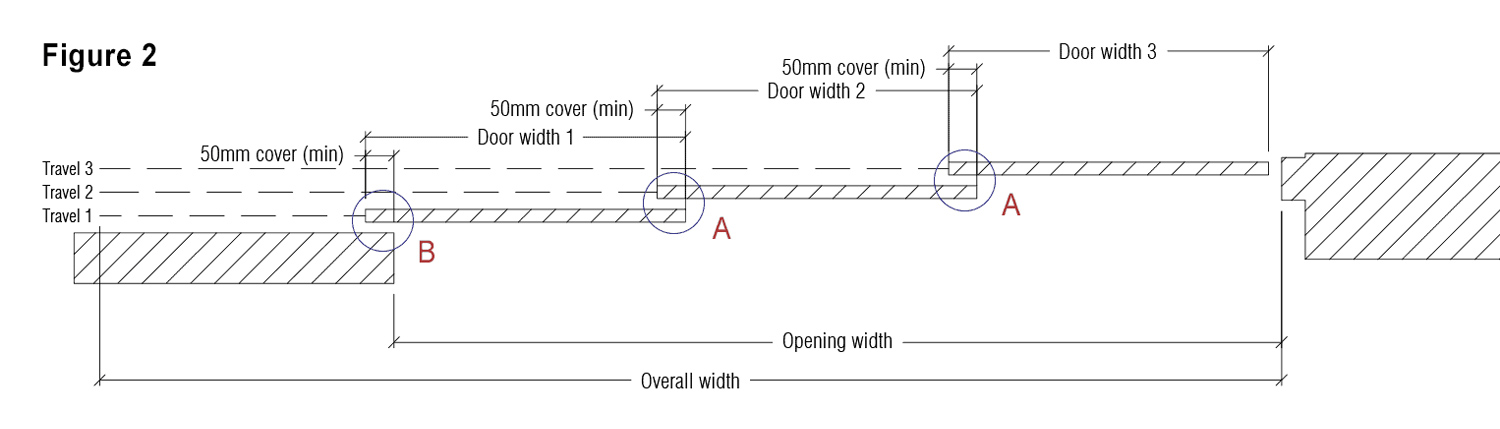

Figure 2

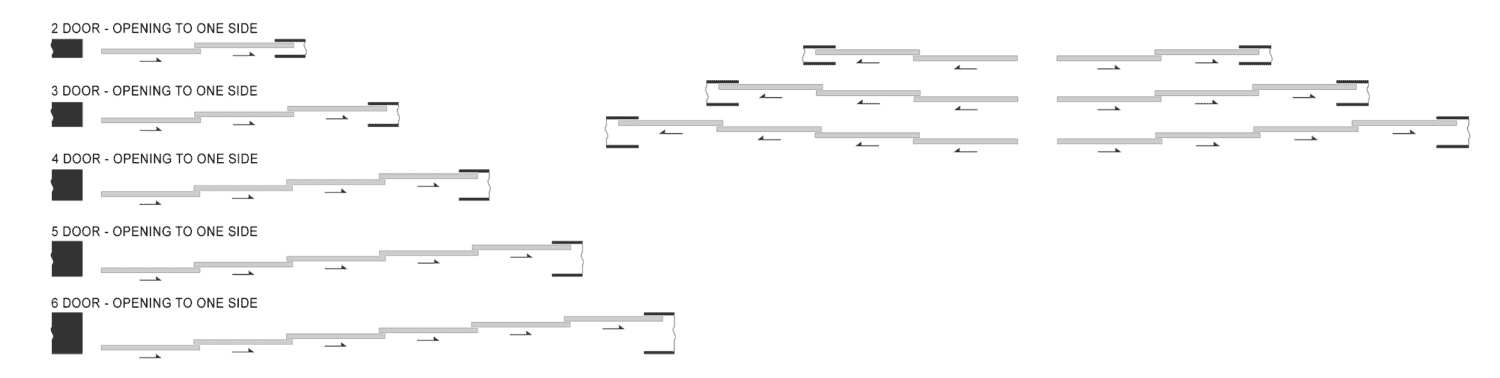

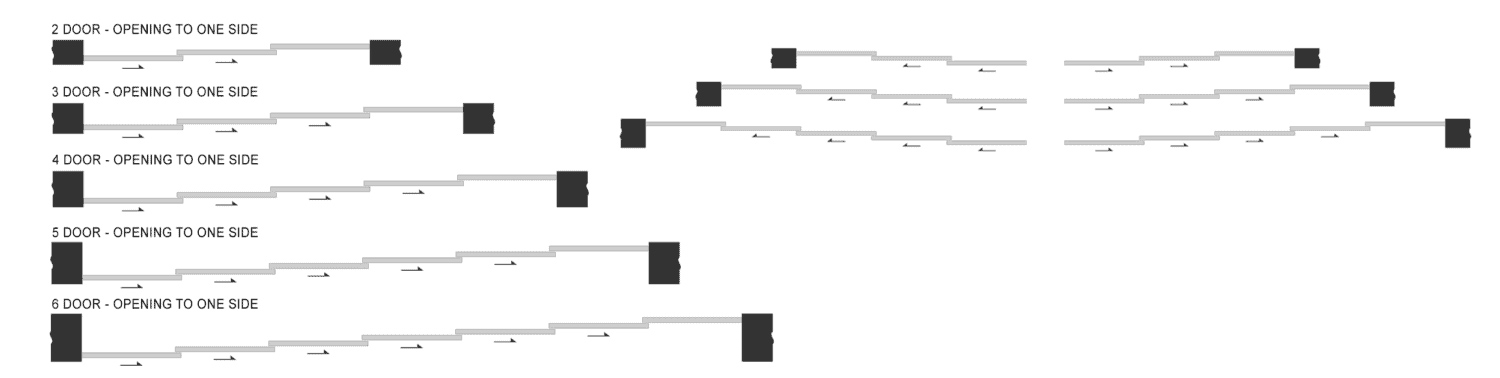

A plan view of a typical three door arrangement noting the various dimensional requirements. Arrangements can have from 2 to 6 doors opening to one side.

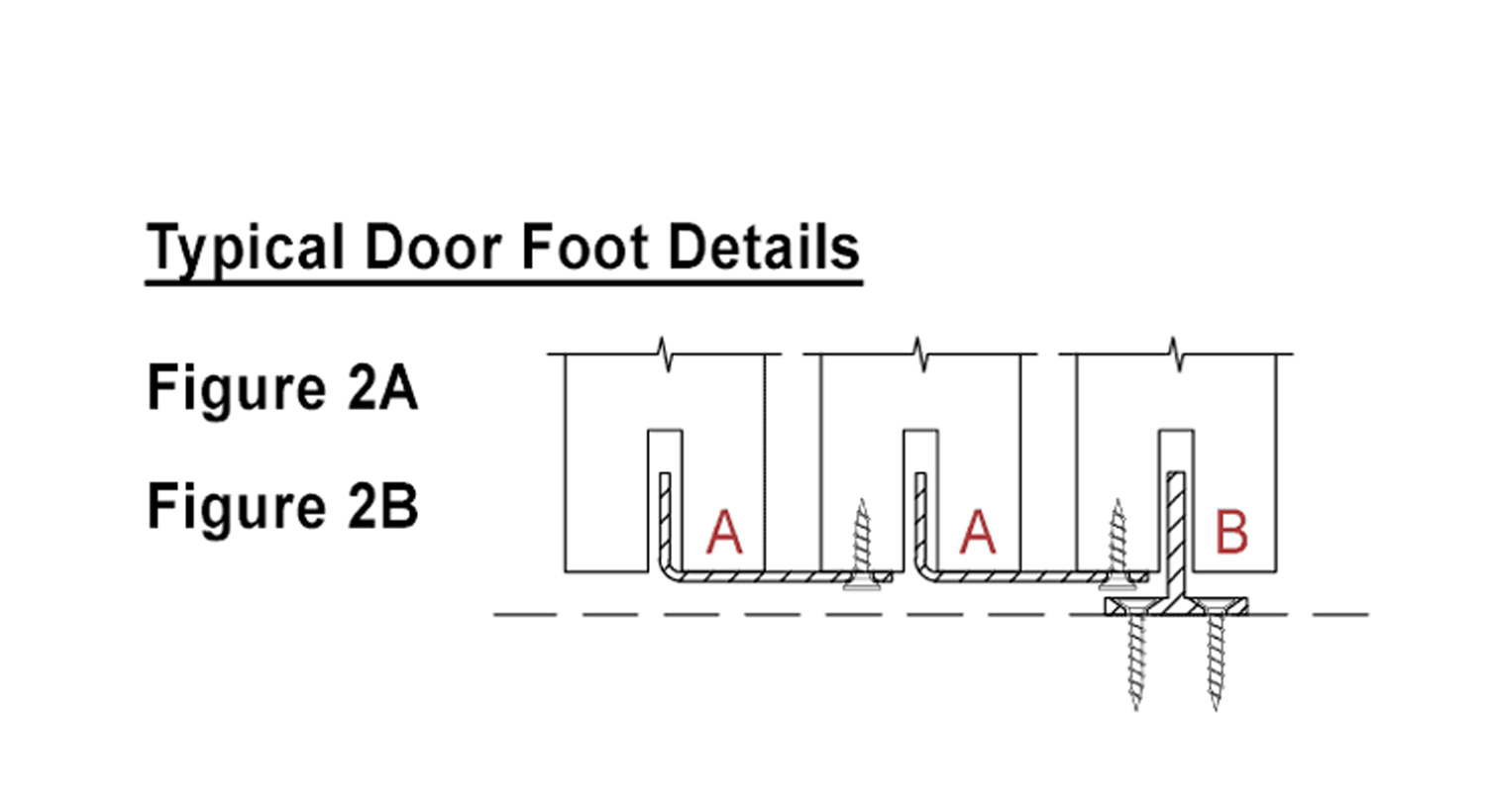

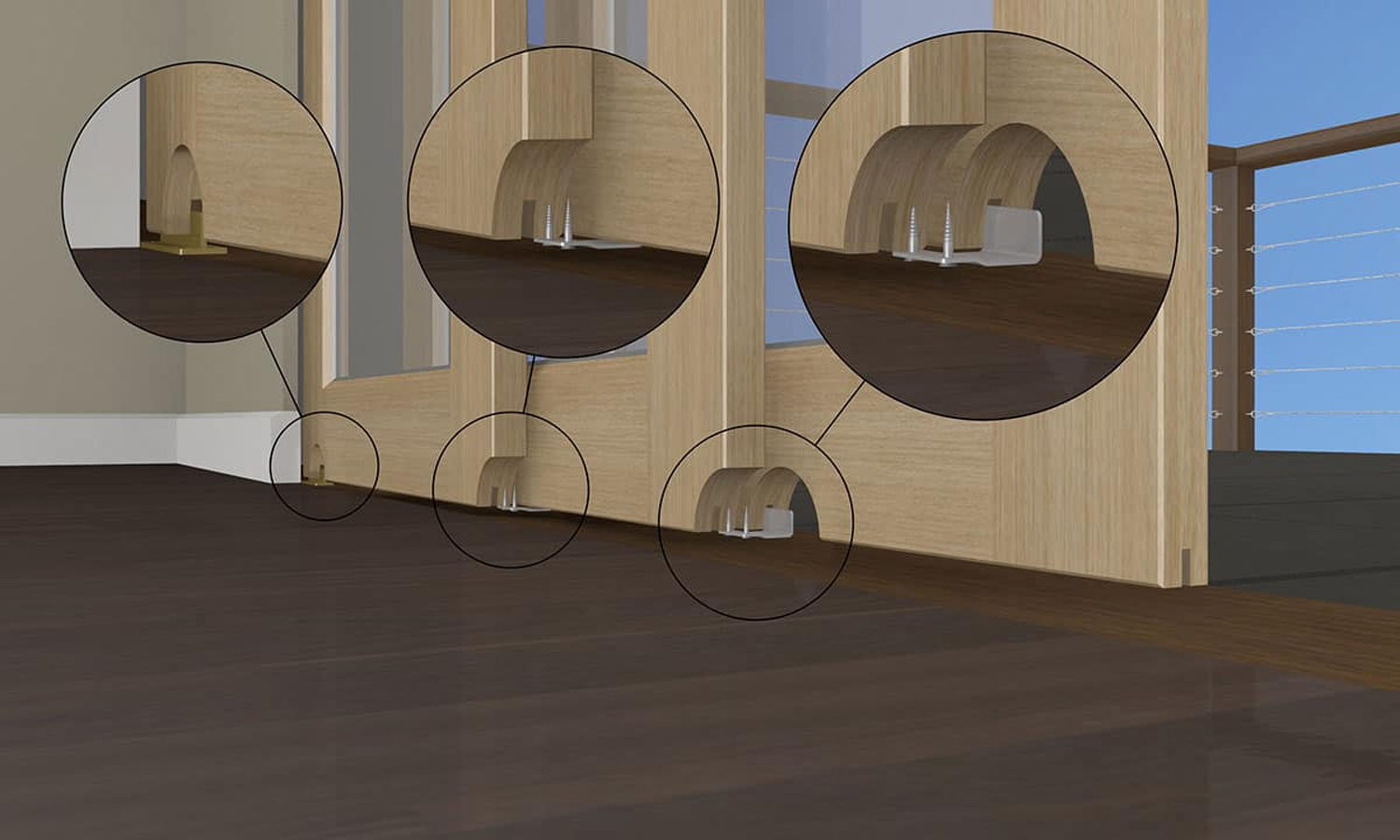

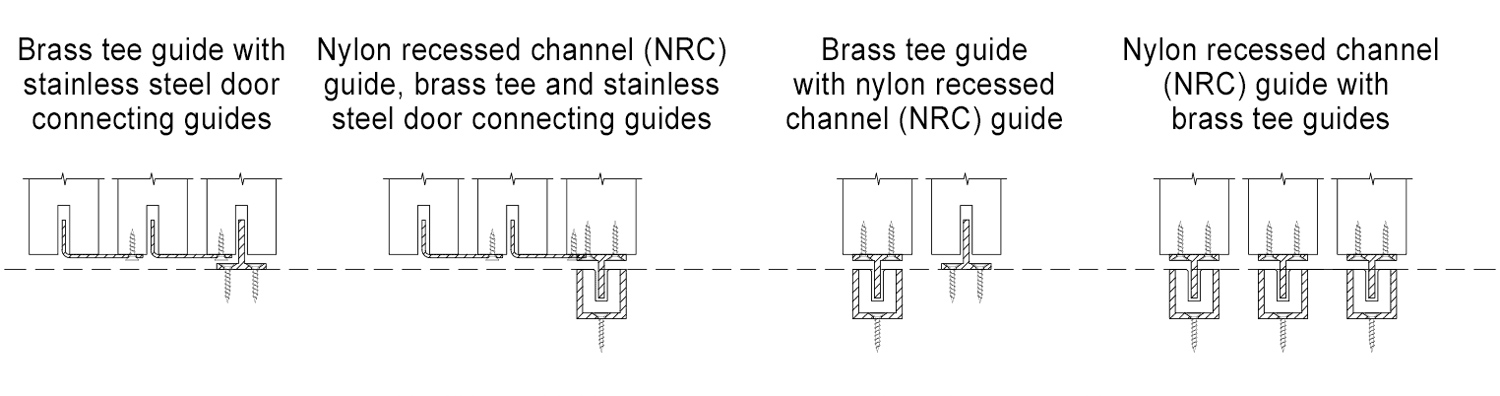

Figure 2A

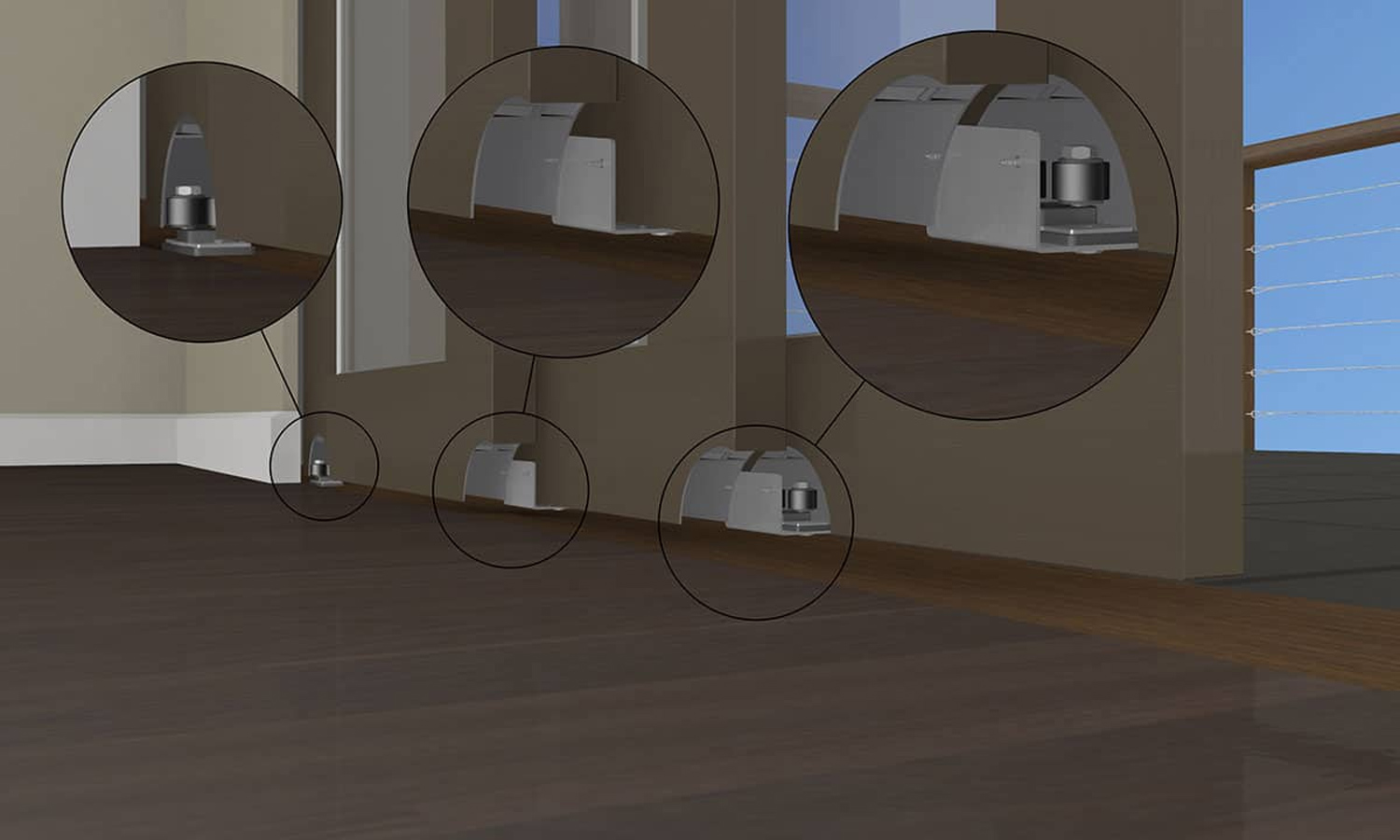

A typical door foot arrangement (Stainless steel connecting guides – 1.6 x 50mm long)
Figure 2B
A typical door foot arrangement (Brass tee guides – 25 x 25 x 100mm)

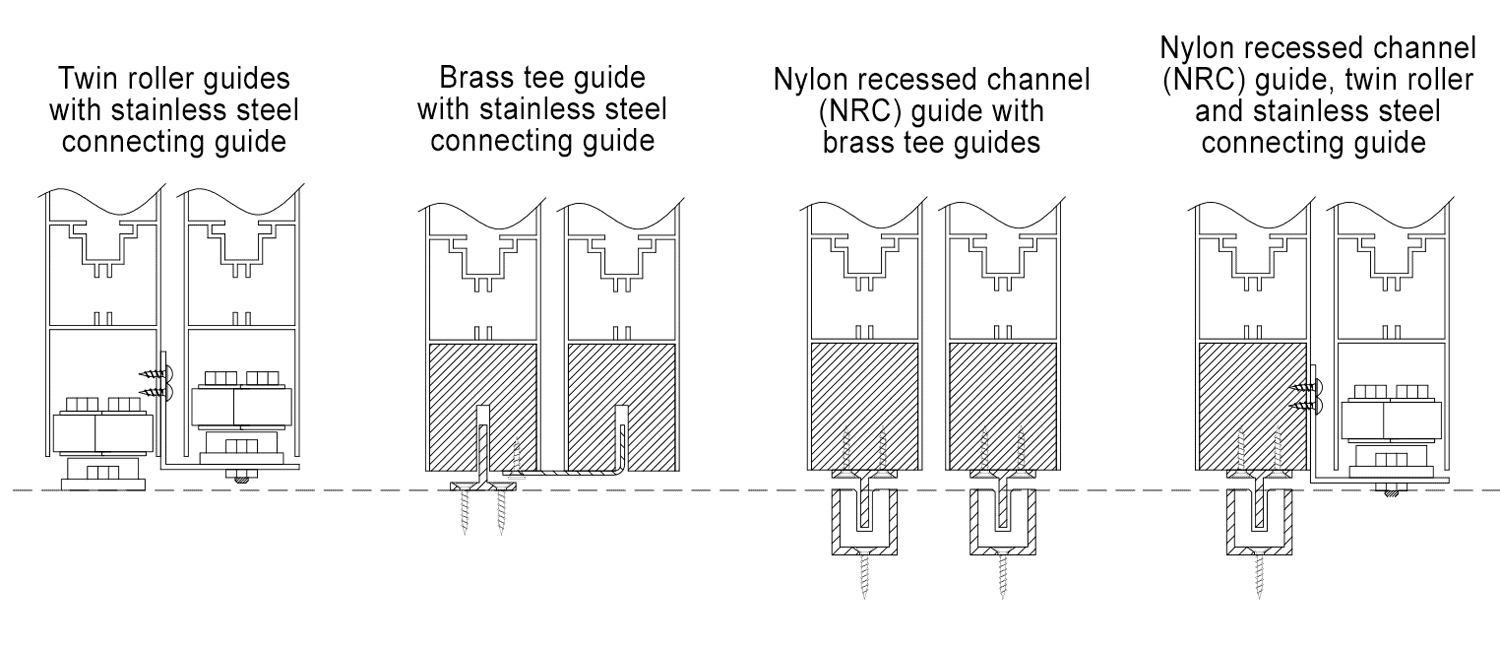

Note: Example shown with timber doors. Refer to the Parallel ‘Guides’ tab for alternative twin roller guide and connecting bracket details. Guide arrangements to suit the number of doors.
The following information will assist our team to advise on Fitzroy® track system specification:
Specification:
Please note:

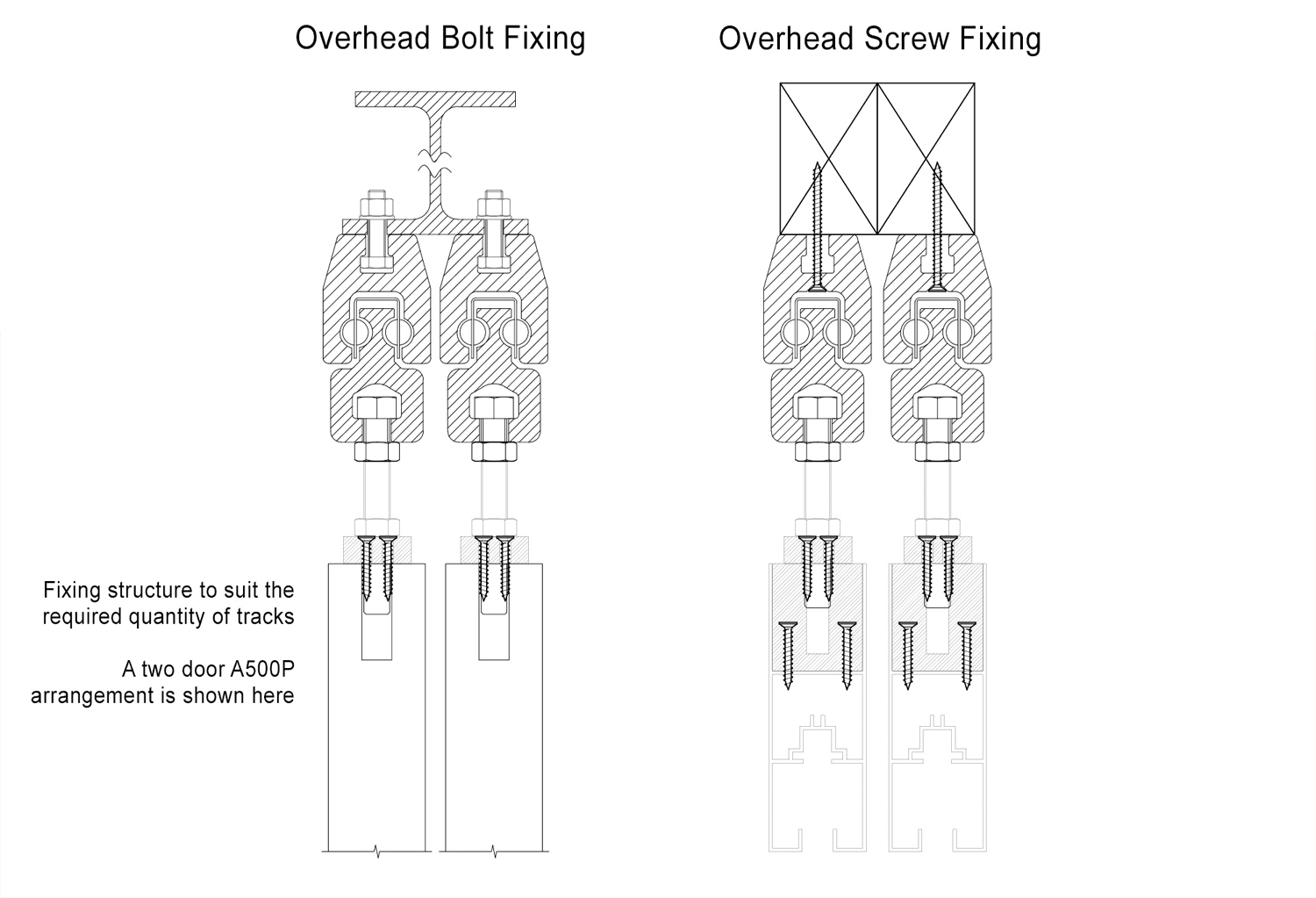

Fitzroy® Track fixing options:
Door Connection:
Please note:
Please note:
Floor Finish:
Track Details:

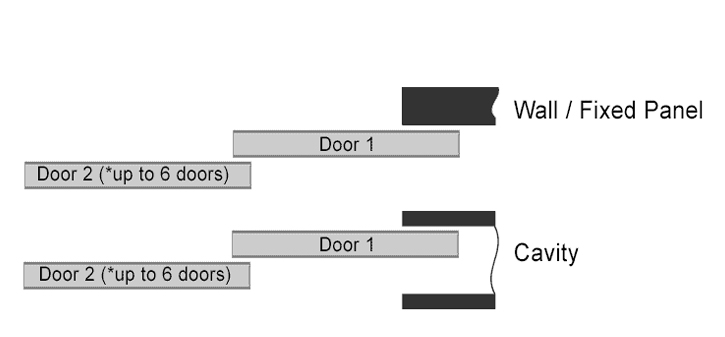

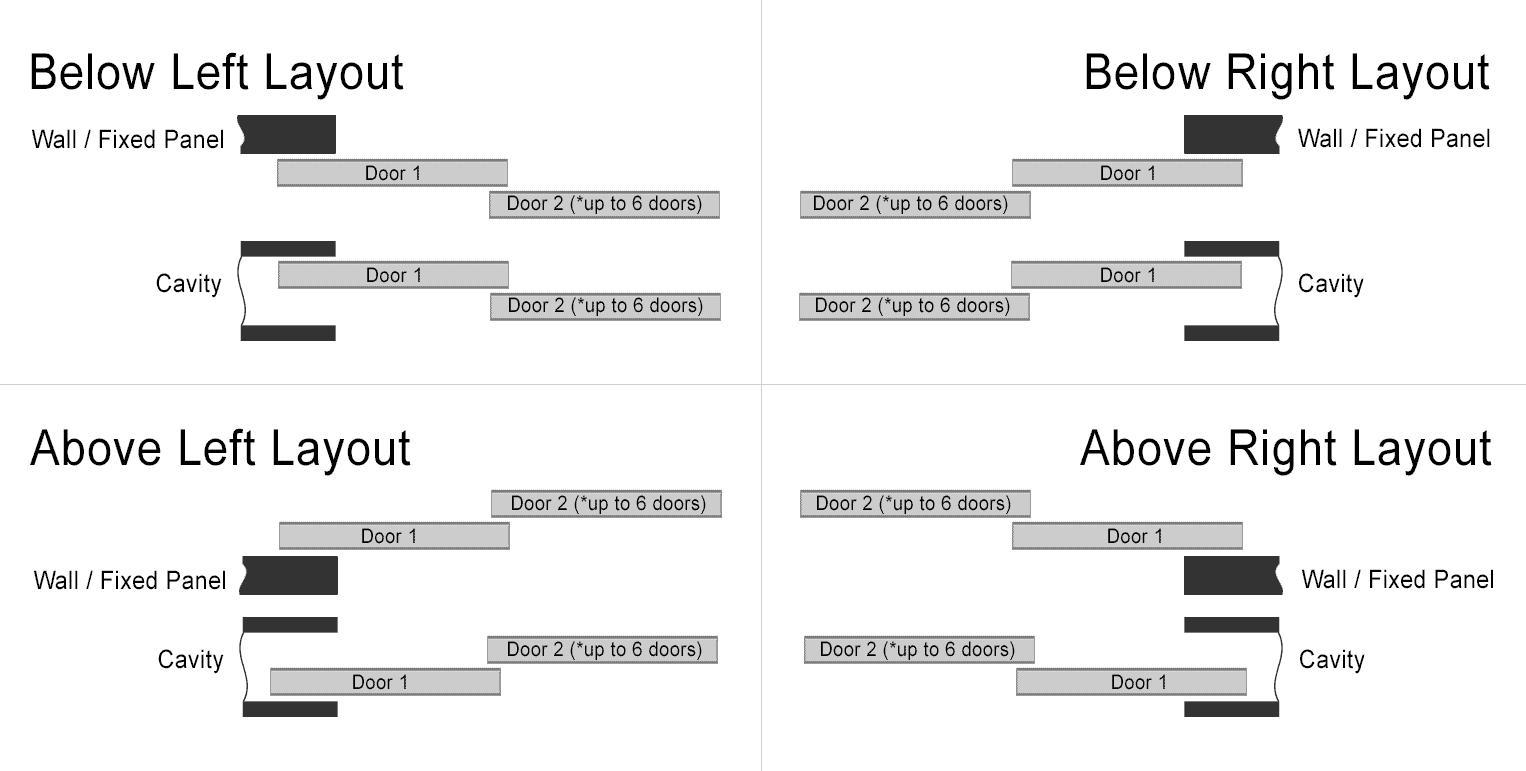

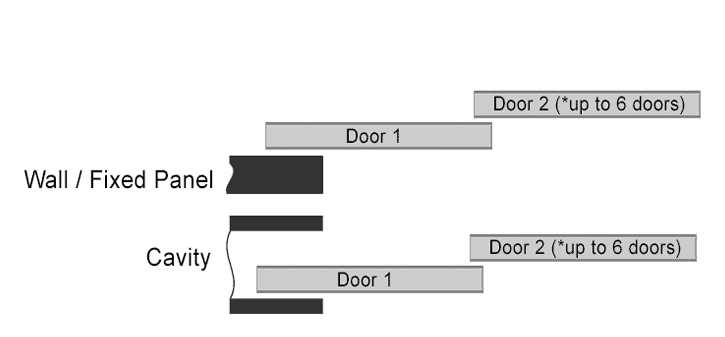

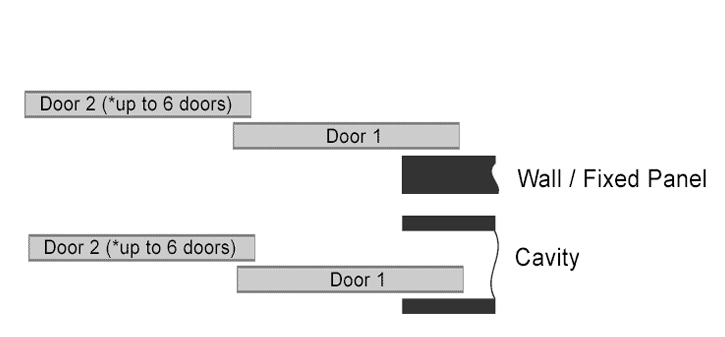

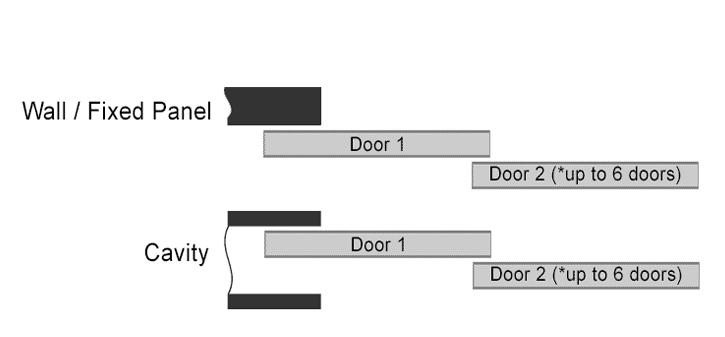

Contact us to advise which of the below four layouts and how many sliding doors are in your arrangement, and we will provide you with the correct order form to suit.
Fitzroy® Tracks have a proven extensive service life providing clients decades of trouble free operation when installed and maintained correctly.
Fitzroy® Tracks have low maintenance requirements making it easy for the user to care for and ensure a lengthy service life for their track.
