Steel Fitzroy® Curved Door Tracks

S100C Light / S500C Medium / S1000C Heavy

Fitzroy® Curved Sliding Door Systems are top hung, ball bearing sliding track systems for manually operated curved doors. Available in a range of load capacities, they are custom manufactured with a minimum constant radius of 1000mm.

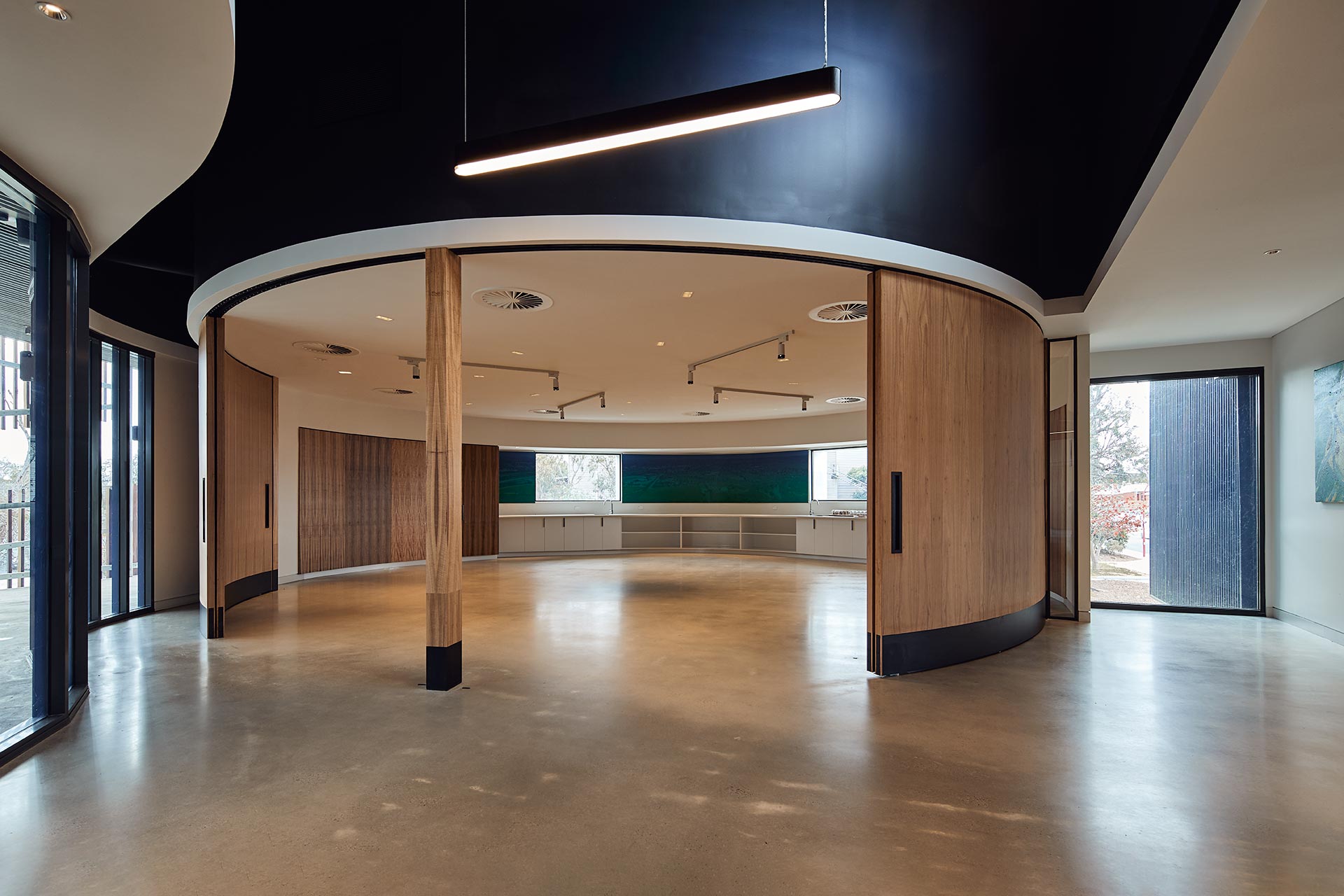

Northam Aboriginal and Environmental Interpretive Centre (AEIC)
Photo credit: Northam Aboriginal and Environmental Interpretive Centre (AEIC)
Steel Curved Tracks

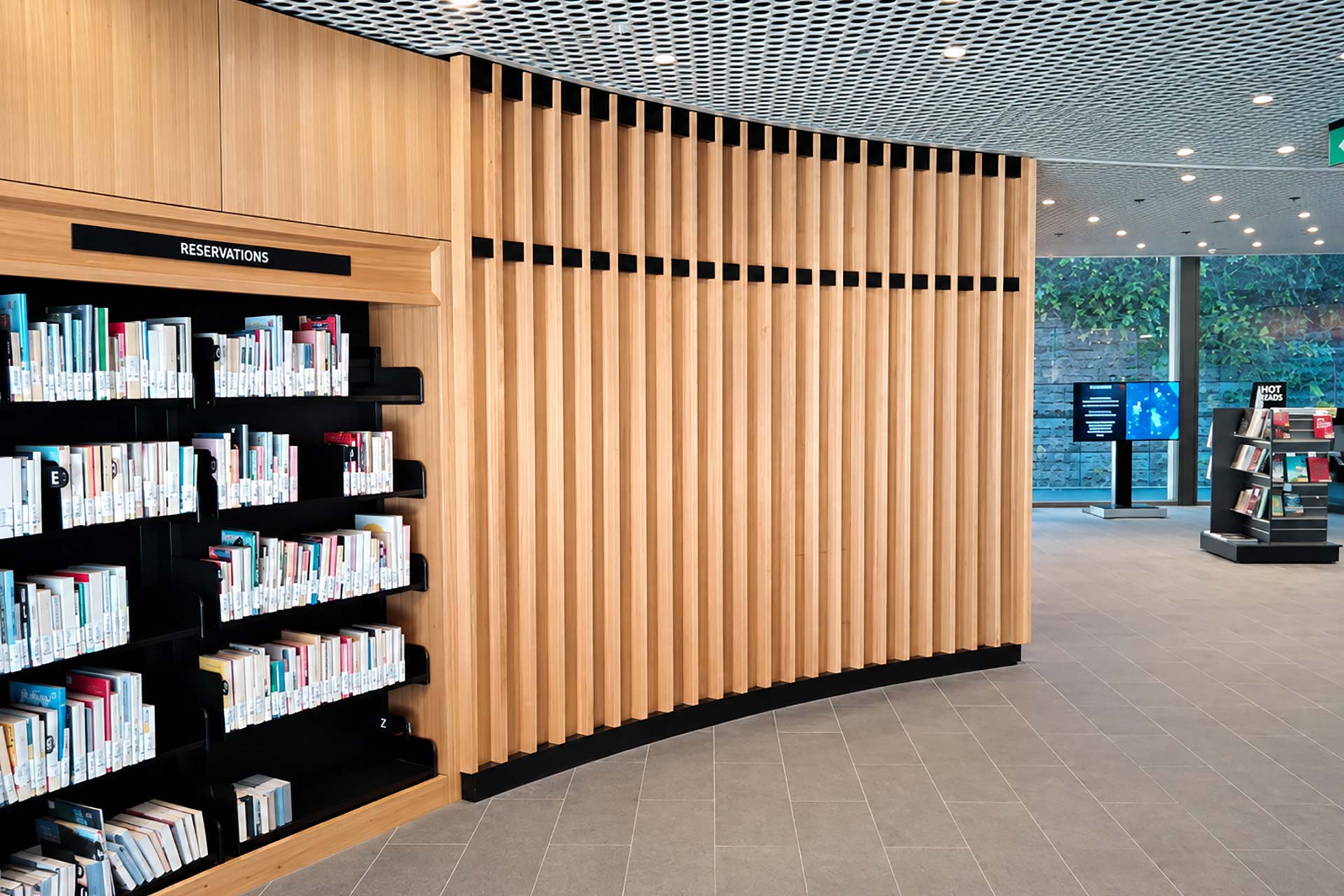

Perth City Library
Perth City Library

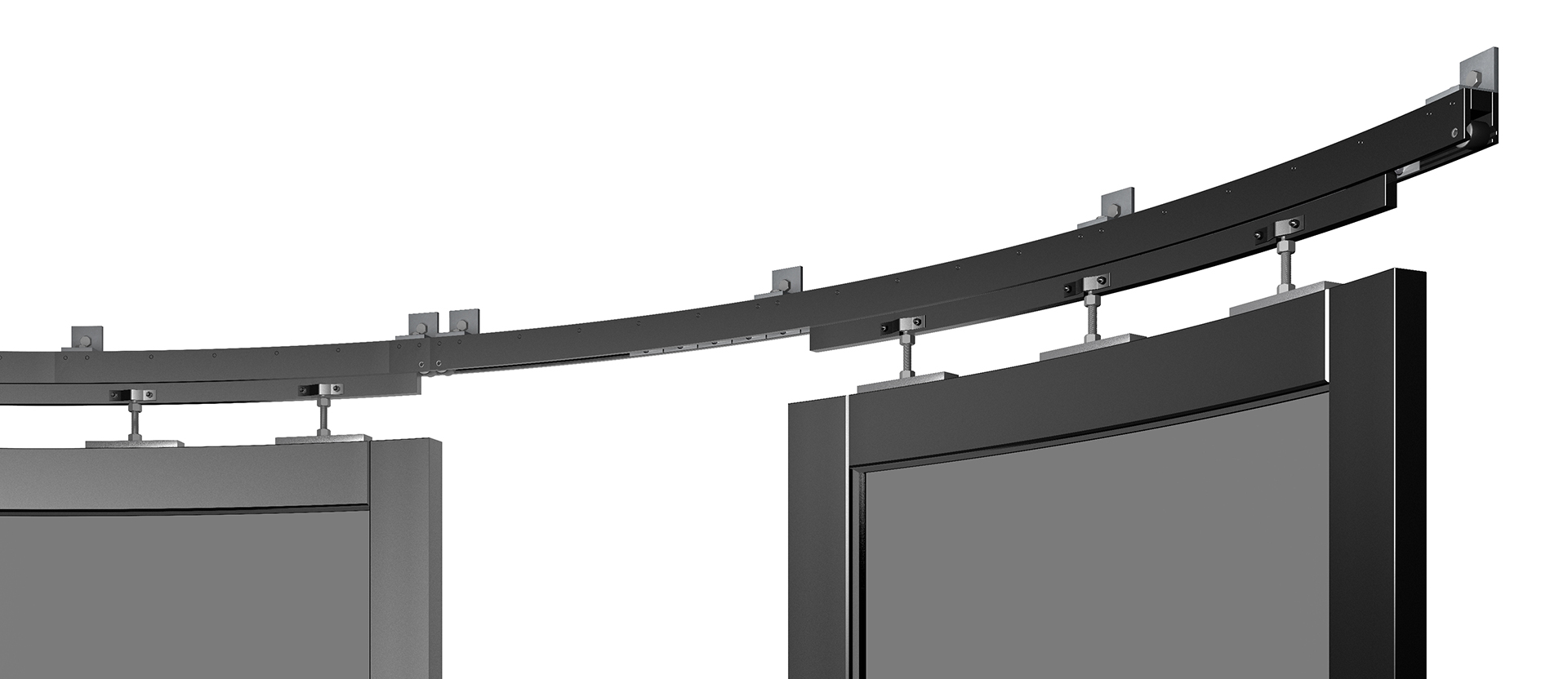

S500C
S500C
S500C

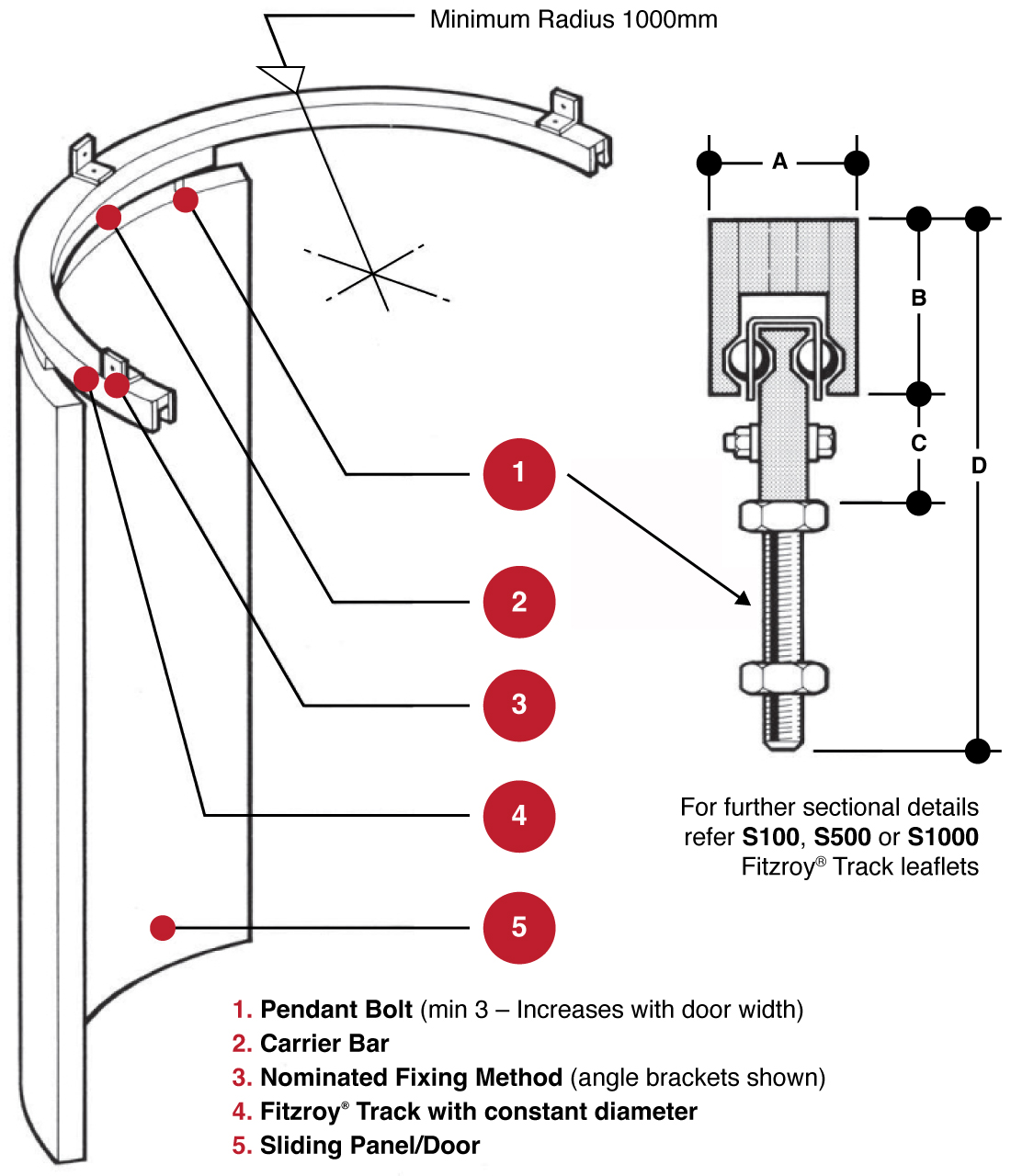

Fitzroy® Steel Curved Tracks Details Drawing
TRACK LOAD Kgs A B C D
S100C
100
34
32
19
102
S500C
500
42
50
32
152
S1000C
1000
58
50
29
152

*Load capacity decreases with tighter radius

Weight Capacities:

Specification:

  • S100C Steel Light Fitzroy® Sliding Door Track
    Suitable for doors up to 100kg made to order by Fitzroy® Tracks Pty Ltd. Capacity reduces with tighter radius.
  • S500C Steel Medium Fitzroy® sliding door track
    Suitable for doors up to 500kg made to order by Fitzroy® Tracks Pty Ltd. Capacity reduces with tighter radius.
  • S1000C Steel Heavy Fitzroy® Sliding Door track
    Suitable for doors up to 1000kg made to order by Fitzroy® Tracks Pty Ltd. Capacity reduces with tighter radius.

Custom-manufactured, top-hung continuous ball-bearing track system to suit the fixing method, door and installation dimensions with built-in non-adjustable rubber stops.

Track length and door travel determined by Fitzroy® Tracks Pty Ltd from dimensions provided at time of order.

The following information will assist our team to advise on Fitzroy® Track System specification:

  • Door width, construction, thickness and weight
  • Door configuration and number of sliding doors
  • Application type and environment
  • Fixing and guide requirements
  • Radius to centreline of track, door thickness

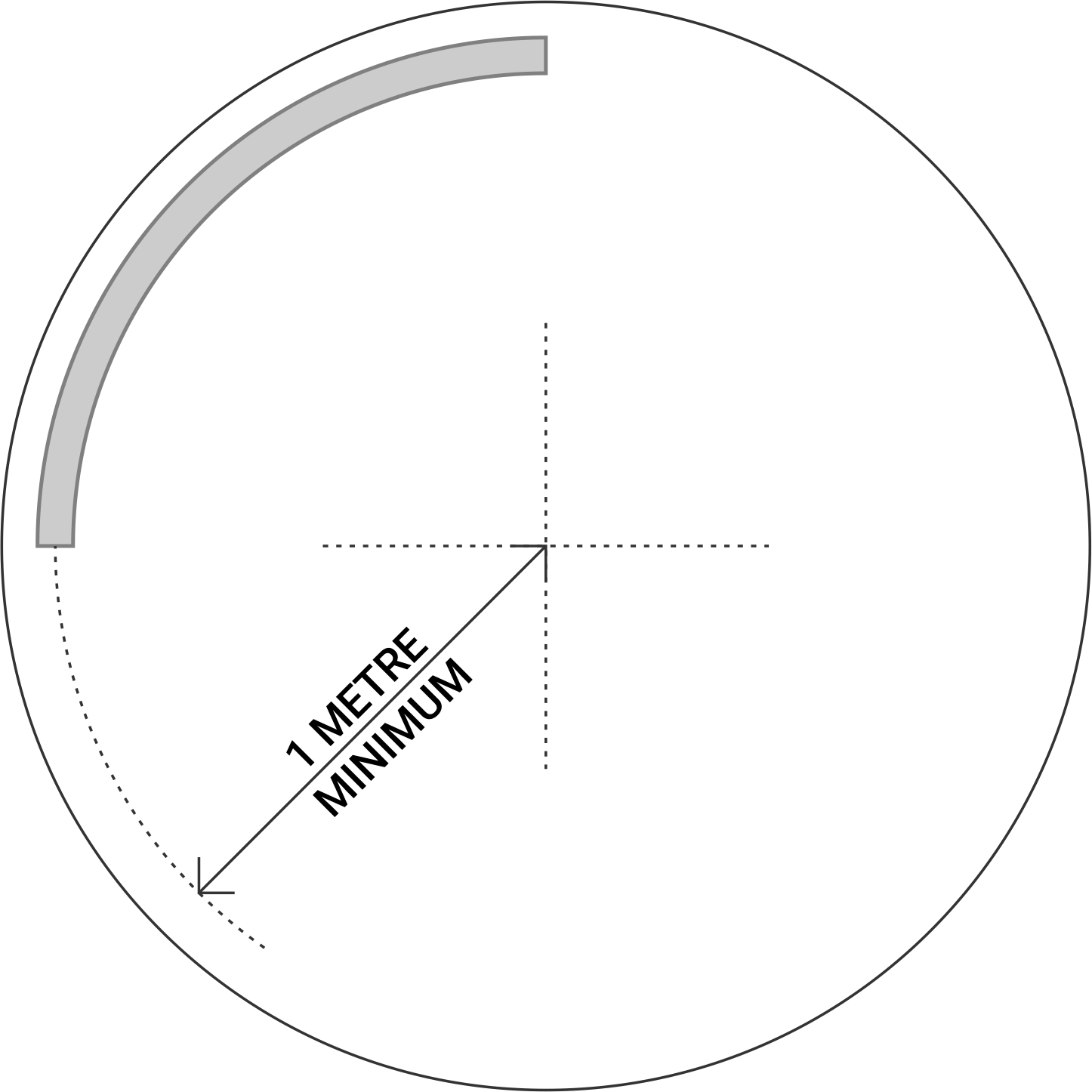

Curved – 1000m min radius

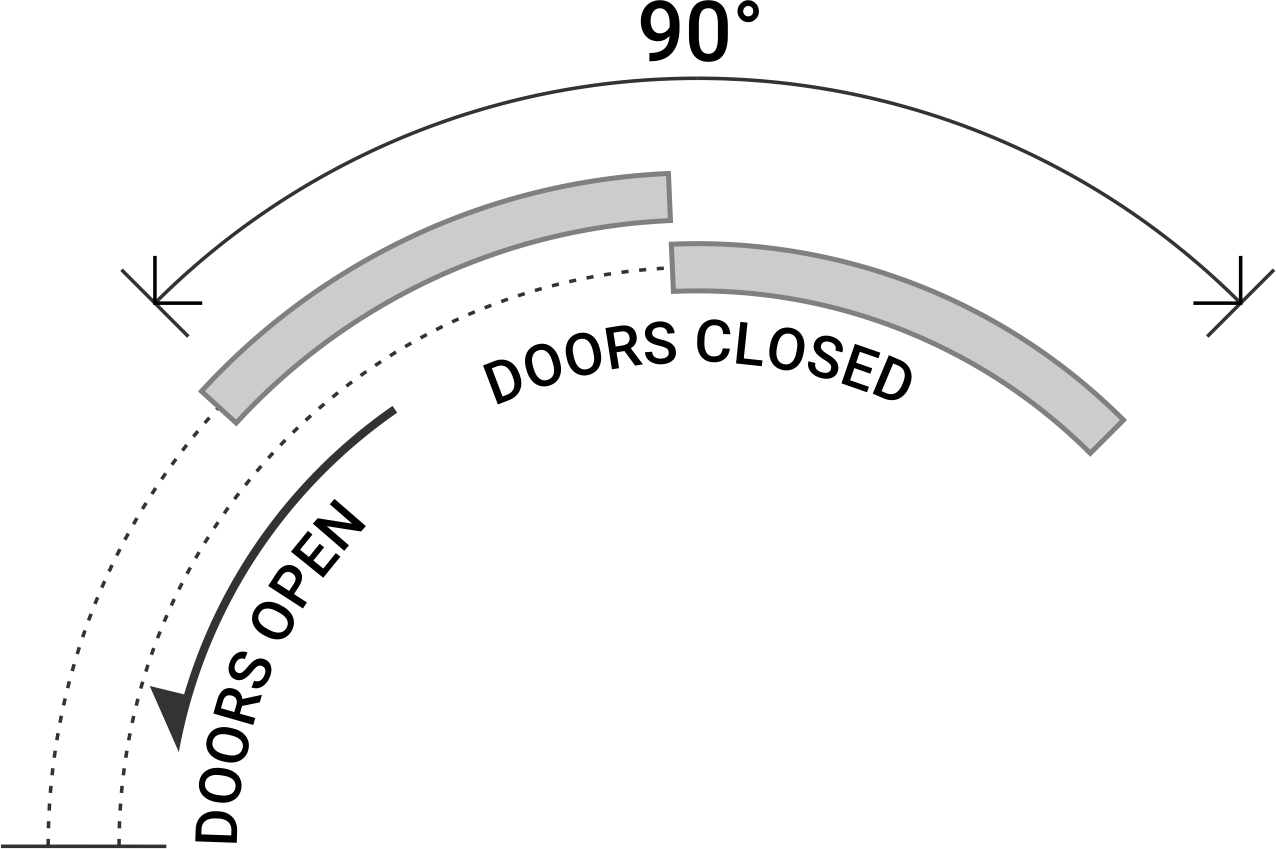

Curved – Dual Track 2-Door 90˚

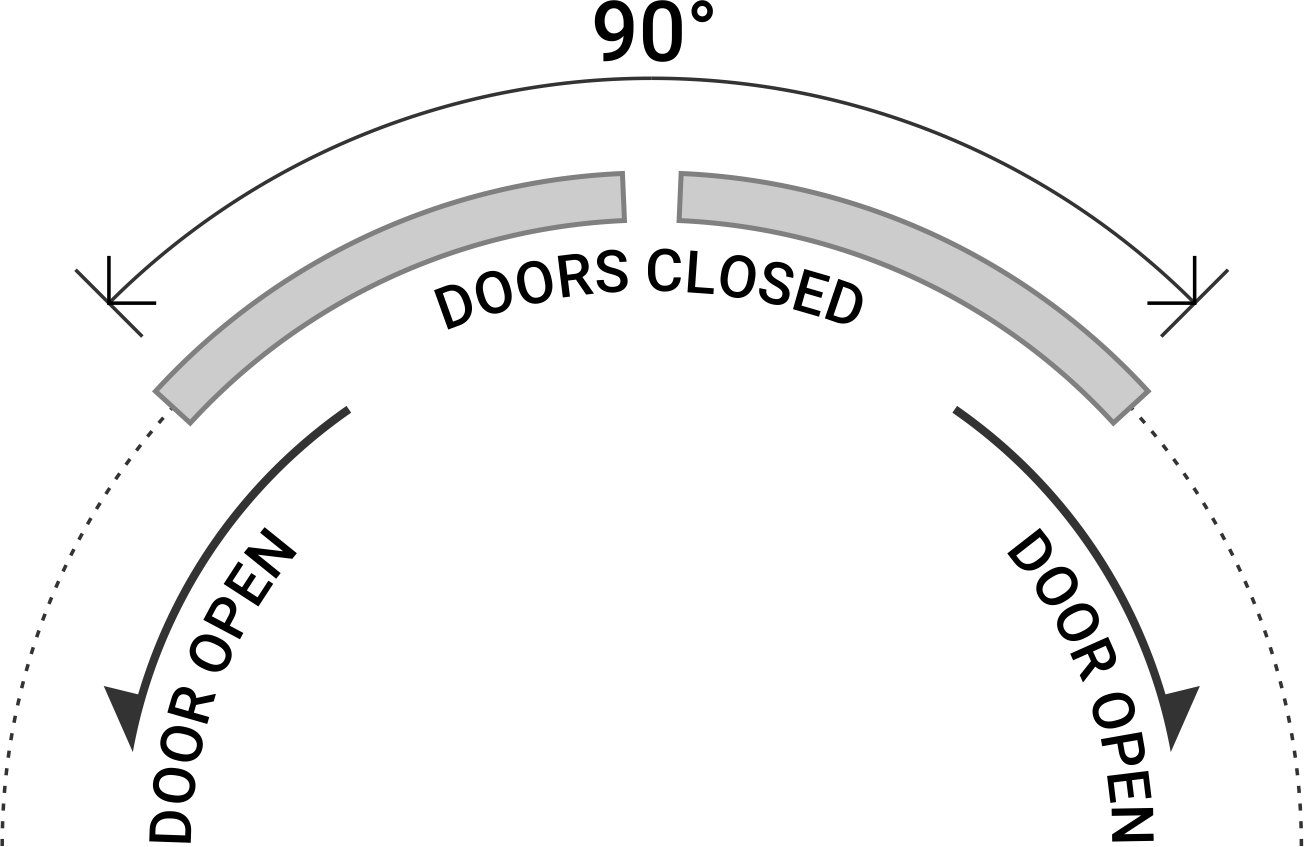

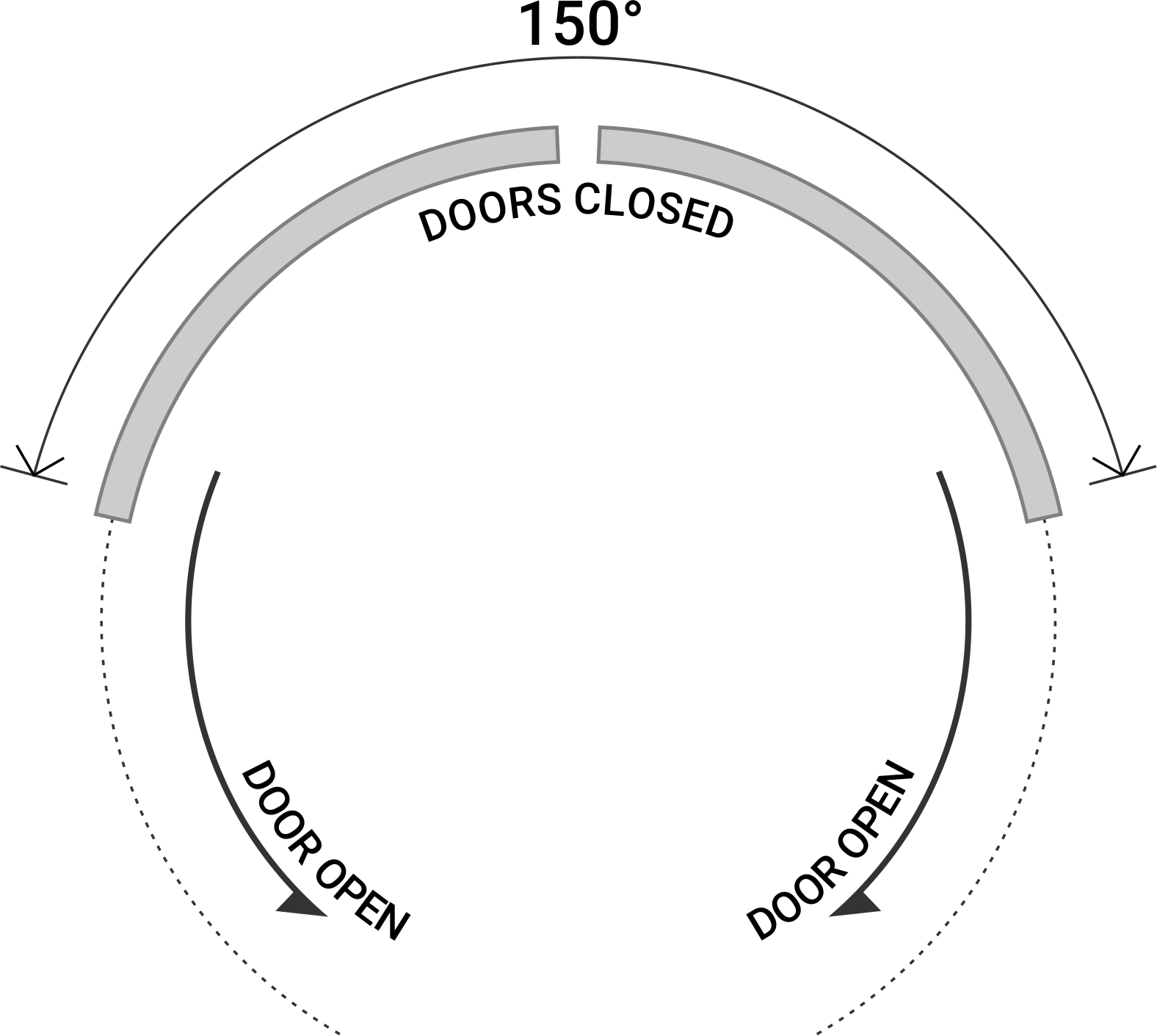

Curved – Single Track 2-Door 90˚

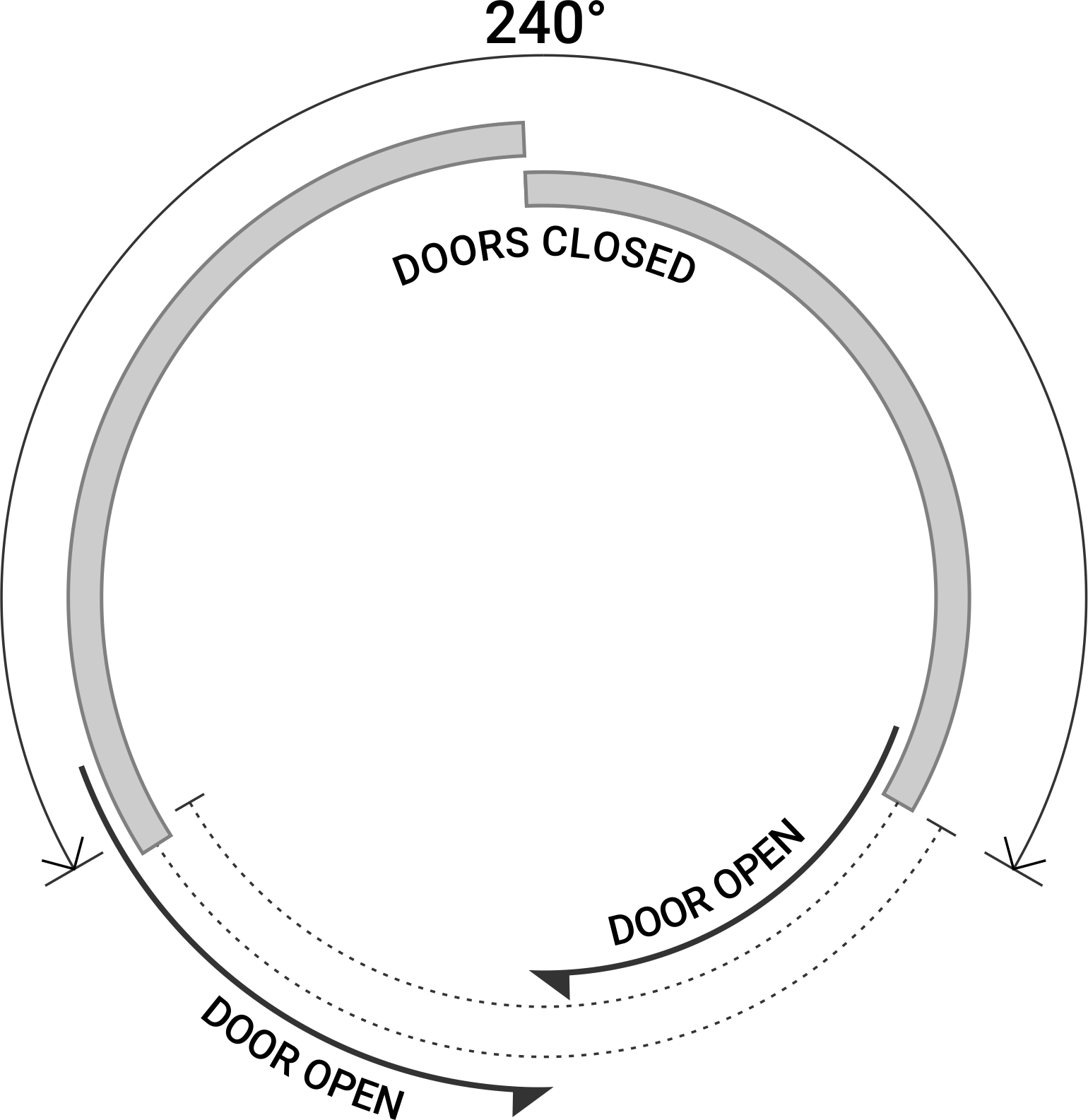

Fitzroy® Tracks can be configured to suit a range of door layouts, openings and project requirements.

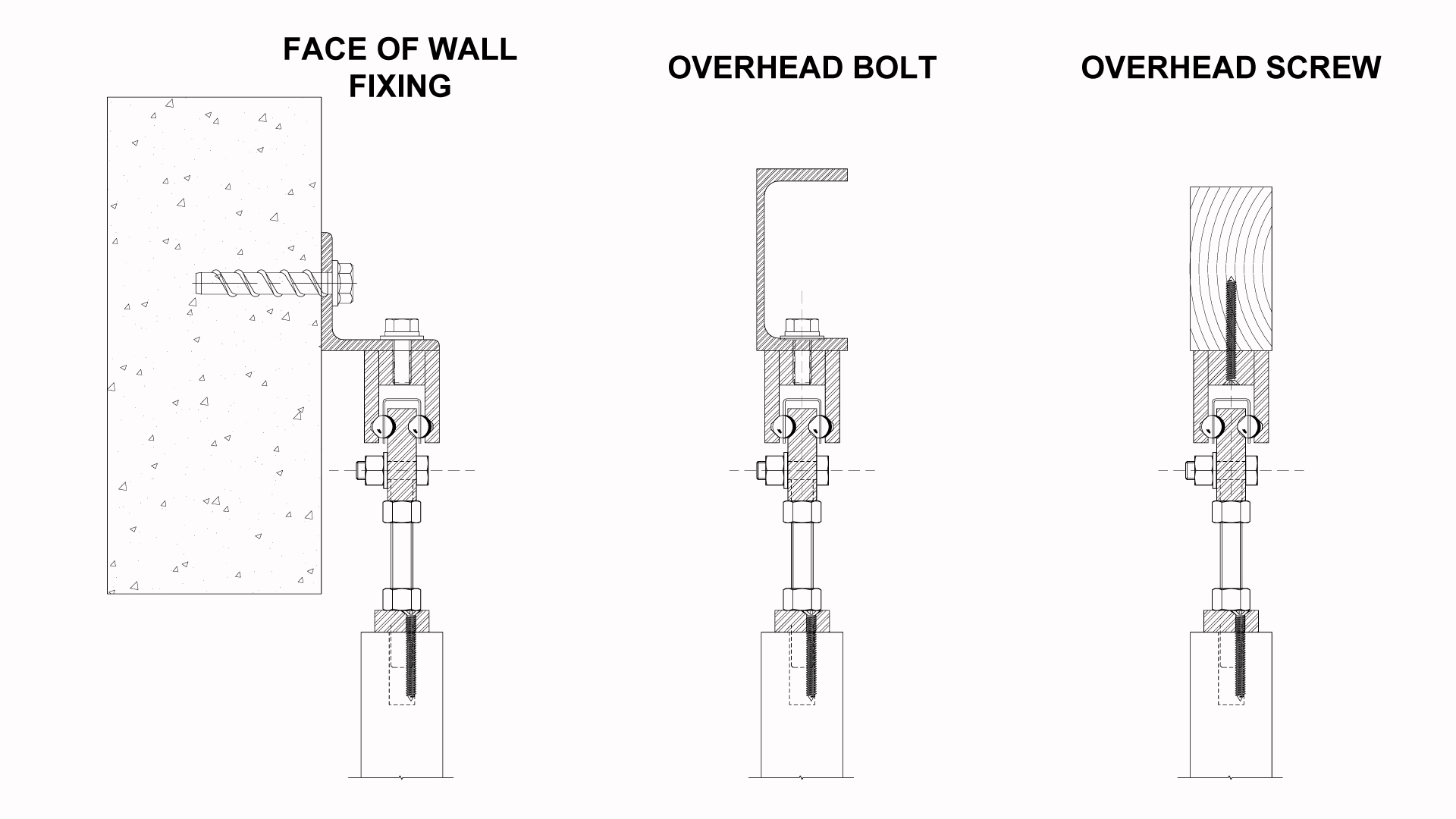

S500C profile – Fixing
*S500C profile shown in fixing example

Please note:

  • No direct overhead fixing to concrete or masonry.
  • Maximum fixing centres: 750mm

Fitzroy® Track fixing options

  • Face of Wall – Brackets & track-to-bracket bolt assemblies supplied. Wall fixings by others.
  • Overhead Bolt – Bolt assemblies supplied.
  • Overhead Screw – Predrilled for CSK screws to suit the Fitzroy Track type. Screw selection & supply by client; screws must suit track, application and door weight.

Door Connection:

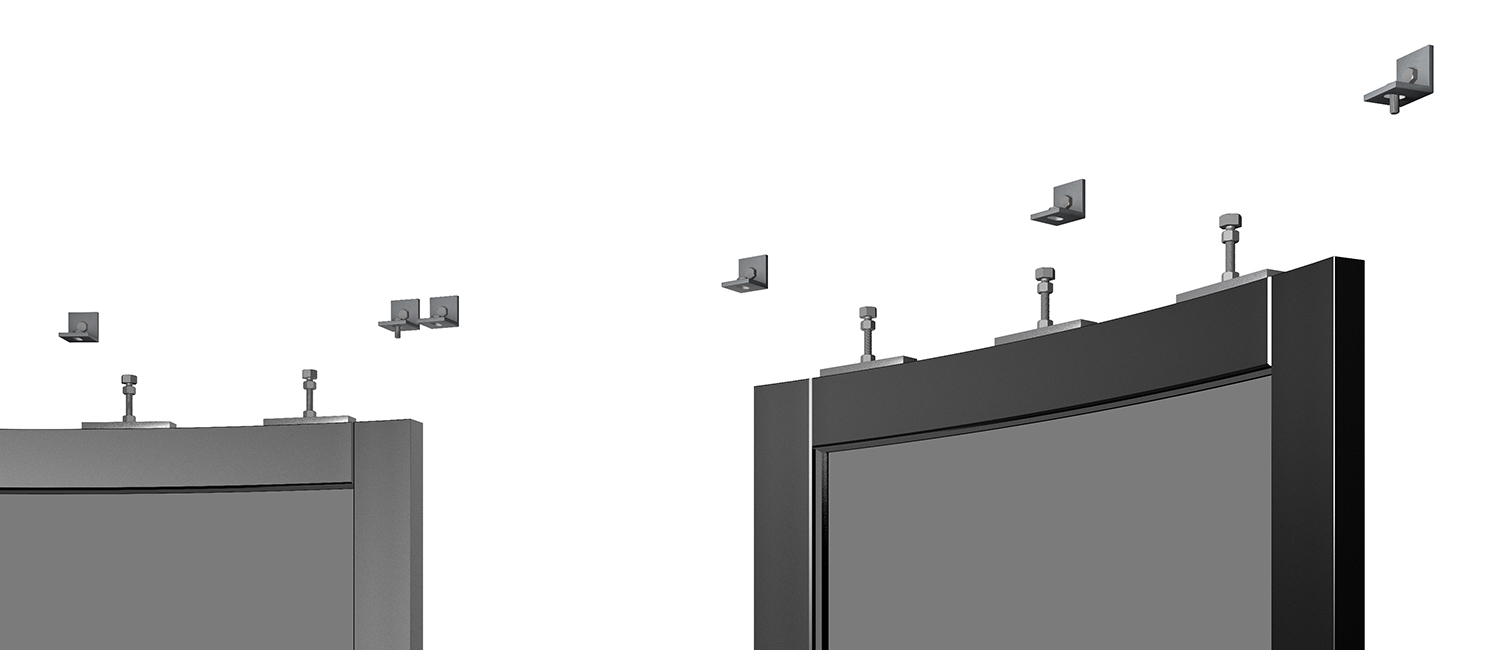

  • Doors connect to the Fitzroy® Track via supplied pendant bolt assemblies – refer detail.
  • Typically, minimum of three assemblies are required per curved door; quantity increases with door width.
  • Frameless glass doors require a suitable patch fitting or top rail adaptor.

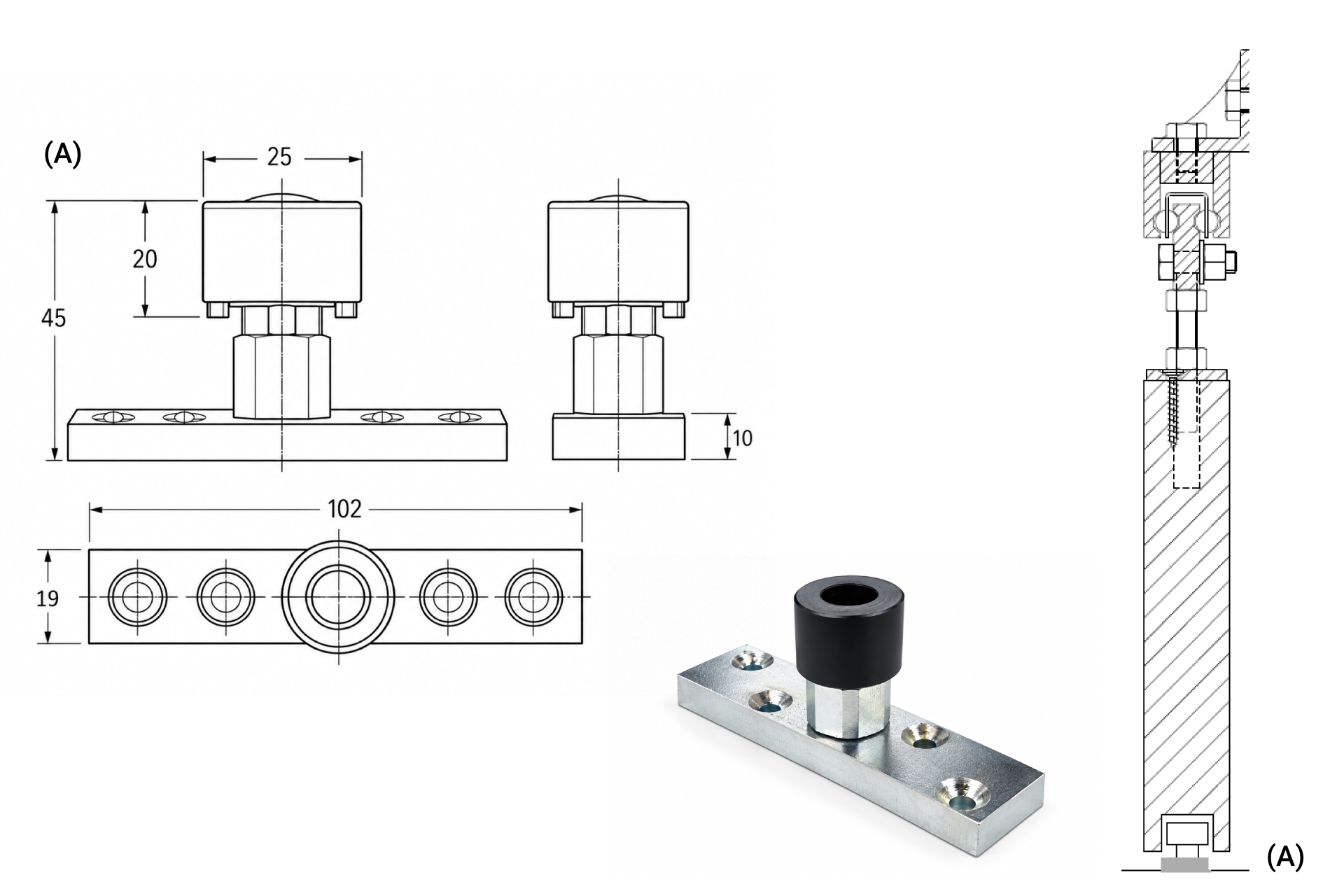

Single roller bearing floor guide for curved doors
Single roller bearing floor guide for curved doors

Documentation

Order Forms

Why use Fitzroy®

  • Experienced technical and specification advice
  • Suits a large range of door widths and heights
  • Compatible with a wide variety of door constructions including solid core, semi-solid core, MDF, framed and frameless glass, aluminium, screens, steel framed with cladding and gates
  • Easy, smooth and reliable operation
  • Heavy duty with proven longevity and low maintenance requirements
  • Custom made to client requirements
  • Top hung with a range of fixing options and guides
  • Easily incorporated with other door hardware
  • Upgrade available for salt and other environments
  • Australian Made
Warranty & Maintenance-icon

Warranty & Maintenance

Fitzroy® Tracks have a proven extensive service life providing clients decades of trouble free operation when installed and maintained correctly.

Fitzroy® Tracks have low maintenance requirements making it easy for the user to care for and ensure a lengthy service life for their track.

Warranty Guide
Maintenance Guide
